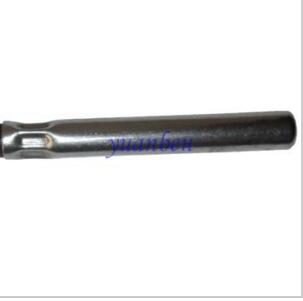

TSP-031 Platinum Resistance Temperature Sensor

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

The assistance of our sophisticated packaging system and skilled personnel, we are able to meet the standard as well as customized packaging requirements of the clients with ease. Working in close coordination with the genuine logisticians, we dispatch the products in the dedicated time.

Description

Yuanben is dedicated to manufacture a line of high precision Platinum resistor temperature sensors, which are made of imported Platinum film or wire-wound.
Yuanben can manufacture various TSP temperature sensors with different platinum film (Grad A/B) and wire-wound platinum resistor, stainless steel housing and mounting method as per client’s request. For special request, please contact our Technical Dept.(such as standard Pt200/Pt300 /Pt500 )

Features

wide measuring range, good resistance interchangeability and stability, high degree of accuracy and precision, good linearity, fast response, excellent shock resistance and high temperature resistance
Various temperature dividing and diverse installation method, simple and beautiful appearance
Stainless steel sealing, good performance of shock resistance, stretch resistance, damp proof and water proof.

Applications : It can be widely used in many fields in the industry and in household equipment for temperature measurements, such as home appliances (ovens, refrigerators, air-conditioner) cars (engine, car interior), processing industries (plastic, food, chemical, car, electronics industries), domestic and industrial heating facilities.

Details : The TSN temperature sensor are widely used in many fields in the industry and in household equipment for temperature measurements in water and under pressure up to 100 bars.

Graph

Download Detail File : Click Here

Technical Parameters

Item	Pt 100 Technical Parameter
Value of Resistance	100Ω
Testing Temp. Range	-30¸250
Testing Temp. Accuracy	Grade A, or Grade B see attached table
Operating Current	2mA max, self heating tolerance1 1mA recommended
Thermal Time Constant	<0.5 S 20mm Outer Dia.
Linearity	±0.1at-30~125 full range or ±2.0 at 55 ~300 full range
Basic Resistance and Interchangeability R0±ΔR0	1000±1Ω@0 or1000±2Ω@
Self Heating	Typical<15mw/ 20mm Outer Dia.
Stability	Better than 0.25/Y , for fixed ambient , 0.05/Y
Long-term Stability	R0 drifting≤ 0.04 (500after 1000H)
Anti-vibration Grade	>40g (10—2000Hz)
Shock Resistance Grade	At 500, >l00g accelerated speed (8 5mS after wave)
Testing Current	0.3-Max 1mA .
Insulation Resistance	>100MΩ at 20>2MΩ, >50MΩ/50VDC at 25
