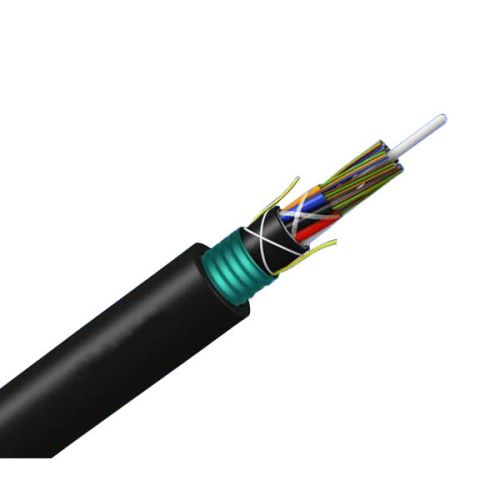

    Tube Armored Fiber Optic Cable, Brand Name : Adela

    Tube Armored Fiber Optic Cable, Brand Name : Adela

    Get Latest Price
    • MOQ1 Piece(s)
    • Brand NameAdela
    • End Face TypeUPC/APC
    • Out Sheath Diameter10-18 mm
    • Nominal Weight50-70 kg/km
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Shenzhen Adela Technology Co.,Ltdverified-icon
    location Shenzhen
    View Number
    • calendar Member Since 7 Years
    • building Nature of Business Supplier
    • Year of Establishment 2014

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Brand NameAdela
    • Nominal Weight50-70 kg/km
    • Out Sheath Diameter10-18 mm
    • End Face TypeUPC/APC
    • Operating Temperature0°C ~ +70°C
    • ConnectorSC Connector

    Characteristics :

    • Loose tubes (or some fillers) standed around the metal central strength member.
    • Bound by corrugated longitudinal steel tape with outer PE jacket.
    • The tube is made of good temperature property material.
    • Good moisture-resistance and ultra violet radiation resistant property.


    Application :

    • Adapted to Outdoor distribution.
    • Long distance and local area network communication.
    • Suitable for aerial .pipeline laying method.


    Technical Parameters

    Cable CountOut sheath DiameterWeightMinimum allowable Tensile Strength(N)Minimum allowable Crush Load
    (N/100mm)    		Minimum Bending Radius(MM)Storage
    temperature
    (MM)(KG)Short TermLong TermShort TermLong TermShort TermLong Term(-)
    2194710.51051500600100030020D10D-40+60
    7212.52081500600100030020D10D-40+60
    9613.52081500600100030020D10D-40+60
    14415.52951500600100030020D10D-40+60


    Optical Characteristics

    Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
    A1b:62.5/125
    SinglemodeG.652(A.B.C)B1.1:Conventional fiber
    G.652DB2: Zero dispersion shifted
    G.655B1.2 :Cut-off wavelength shifted
    G.657(A1.A2 .B3)B4: Main technical data for positive
    dispersion shifted single-mode fiber

    Additional Information

    • Packaging DetailsPackaging Material Carton , Wooden , Plastic Customized Packaging Facility Yes
