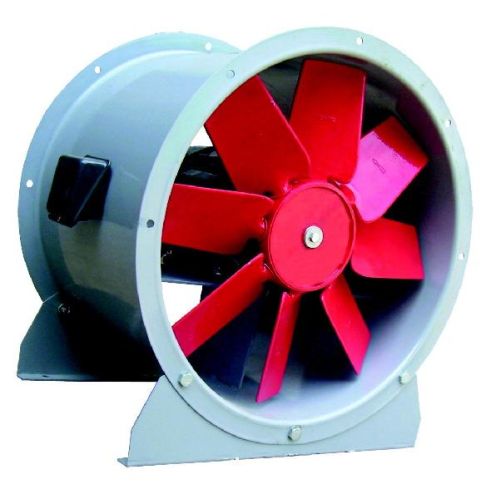

Tube Axial Supply Air Fan

We understand that the superior quality raw material is essential for manufacturing top-notch products. For this, we have tied-up with the leading names who assure us for the quality. We stringently follow automated warehousing system that helps us in meeting the safe storage requirements. Thus, we ensure zero damage to the products till the final dispatch.
Specification :

• Available in long and short cased
• Size from 315 to 2000 mm
• Capacities 1000 to 200000 CMH
• Static pressure up tp 1000 Pascal
• Suitable for exhaust and ventilation

Details :

• Construction - Double flanged casing manufactured in mild steel or galvanised sheet steel, the impeller having manually adjustable pitch blades is made of Aluminum.
• Finish - Painting or galvanised after manufacture are normal finishes on all parts.
• Operating Temp. -20deg.C to +55deg.C
• Motor - Totally enclosed Class F motor, to a min. IP54 protection are fitted as standard. Standard motor up to 2.2kW are usually supplied on DOL starting, motor 3.0kW and above are star/delta starting.
