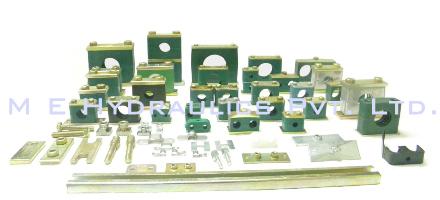

Tube Clamps

We are offering tube clamps.
Manufactures tube clamps as per din 3015 standards.
Me' tubeclamps are available in:
standard series clamps-6mm to 76mm,1/4"od to 3"od, 1/8"nb to 2 1/2"nb-confirms to din3015-1
heavy series clamps- 6mm to 219mm,1/4"od to 8.5"od, 1/8"nb to 8"nb- confirms to din3015 - 2
twin series clamps- 6mm to 42mm, 1/4"od to 1.5"od, 1/8"nb to 1 1/4"nb- confirms to din3015 - 3
light series clamps- 4mm to 22mm, 1/4"od to 22, 1/8"nb to 1/2"nb- ln, lng, lnu series
ri-clamps- standard series - 10mm od to 32mm od- clamps with rubber insert
ri-clamps- heavy series - 10mm to 88.9mm od- clamps with rubber insert
construction series- 220mm to 800mm od- two part weld construction
material of construction:
jaws: poly propylene, poly amide [pa], aluminium & tpe
mounting parts: carbon steel, ss304, ss316
spacing for 'me' clamps:
recommended spacing for clamps [ for static load]
tube od spacing in meter [suggested]
6 to 12.7mm = 1.0mtr
12.7 to 22mm = 1.2mtr
22 to 32mm = 1.5mtr
32 to 38mm = 2.0mtr
38 to 57mm = 2.7mtr
57 to 75mm = 3.0mtr
75 to 76.1mm = 3.5mtr
76.1 to 88.9mm = 3.7mtr
88.9 to 102mm = 4.0mtr
102 to 114mm = 4.5mtr
114 to 168mm = 5.0mtr
168 to 219mm = 6.0mtr
advantages:
'me' tube clamps symbolize quick & easy pipe & hose installation as well as clean distinct pipe lay-out.
Special rib design reduces vibration and noise pollution in systems
prevents loosening of joints & weld due to vibration and thus reduces leakage in systems
'me' clamps provides rigid support to the pipe lines and absorbs shocks & vibration
temperature range up to 400°c [material dependent]
installation information:
a] installation on weld plate b] installation on mounting rails c] multi - level assembly
application:
to support tubes, pipes, hose & electric cables
industries:
industrial hydraulics
mobile hydraulics
marine hydraulics offshore
general industrial pipe construction
mining industry
nuclear reactor construction
instrumentation and control technology
pneumatics
