Tube Cleaner, Brand Name : CM, Packaging Type : Green

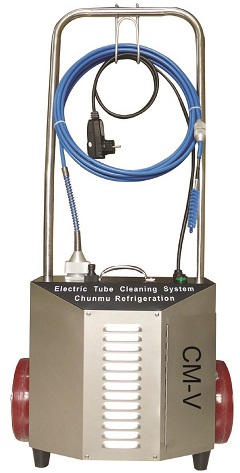

Product Description of CM-V Tube cleaner
CM is one of the earliest factories in developing and manufacturing rotary tube cleaners. The CM-V Tube cleaner is the third generation of the original rotary tube cleaner. All our rotary tube cleaning machines make tough tube cleaning a simple, one-person operation. They are ideal for cleaning tubespipes 6.35mm-25.4mm (14''-1'') I.D.In chillers, condensers, evaporators, absorption machines and heat exchangers etc.
The CM-V Tube cleaner uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. As the shaft rotates inside its watertight nylon casing,the unit feeds water through the casing to the cleaning tool. A foot switch controls shaft rotation and water flow.While the operator feeds the rotating shaft assembly through the tube, the water flow flushes out deposits as they are loosened.
Product Feature of CM-V Tube cleaner
Simple to operate-minimal training required.
Stainless steel construction - long life.
Quickly connect and disconnect the flexible shaft-no tools required.
Interchangeable cleaning tool - versatile.
Large wheels-easy to move.
Product Specification of CM-V Tube cleaner
Power Supply: 110V60Hz, 220V50Hz
Motor: 12HP
Flexible Shaft Speed: 860rpm1420rpm
Dimensions: 560mm(L)×350mm(W)×1000mm(H)
Weight: 30KG
Application of CM-V Tube cleaner
Condenser & Heat Exchanger Tube Cleaner
Other Information of CM-V Tube cleaner
Flexible shaft
Diameter: 6mm-12mm(14''-1'')
Length: 3.7m-22.9m
Material: carbon steel stainless steel
Brush
Diameter: 6.35mm-25.4mm(14''-1'')
Material: nylon brushes with wear resistance stainless steel brushes brass brushes
