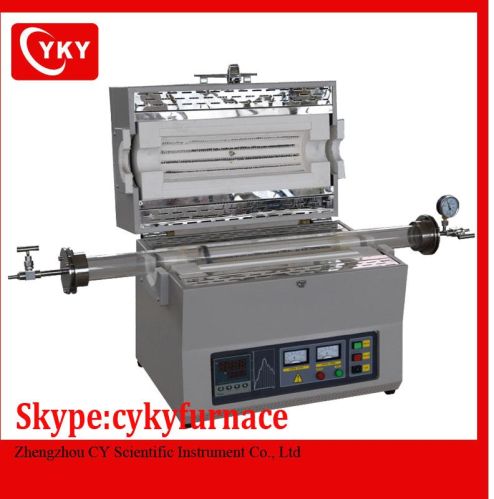

We are offering tube furnace / vacuum tube furnace / atmosphere tube furnace.features of the mini tube furnace vacuum tube furnace
1.fast heating rate:20°cmin
2.multi-function: cvd experiment, growth of graphene, crystalline silicon substrate coating and etc
4.30 steps programmable automatic control
5.can connect with vacuum pump, and mfc do cvd experiment
6.accept pc interface control
specification of the mini tube furnace:
model cy-o1200-50ic-s
display led
limit temperature 1200â
working temperature â¤1100â
heating rate suggestion 0~20âmin
temperature accuracy ±1â
temperature zone single
chamber size Ï50Ã200ï¼mmï¼(2"x 8")
heating element aludirome
thermal couple k type
rated power 1.2 kw
working voltage ac 110-480v 5060 hz
temperature control pid automatic control via scr power control
heating curves 30 steps programmable
chamber material alumina fiber
warranty 12 month (exclusive wearing part)
.
