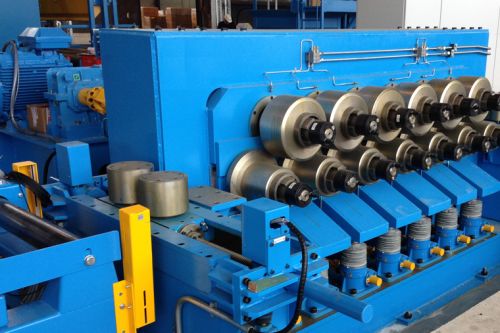

Tube Straightening Machine

Cross Roll Type

GMT 6/10 DRIVE CROSS ROLL tube straightening Machines are designed to handle tube of Outer Dia from 6 mm to 170 mm in different models. These machines are based on well proven rotary pressure and deflection principle of straightening, which gives very high degree of straightening ranging from 1 mm to 0.3 mm in 1000 mm.

The rolls are mounted in pairs  and are drive by two identical motors through totally enclosed gear boxes and box and universal spindel couplings.

• 6/10 work rolls arranged in pairs.
• Two identical motors driving top and bottom rolls, fixed/variable speed.
• The Machine can easily and quickly be set when changing from one size of tube to another.
• Tube can be straightened accurately without surface blemishes.
• As the tube is retained between each pair of rolls no guides pairs of rolls no guides are required to control the pass of the tube.
• Machines can be supplied with manual, semi automatic and automatic handling system.
• Machines can be supplied with pressure sensing unit.
