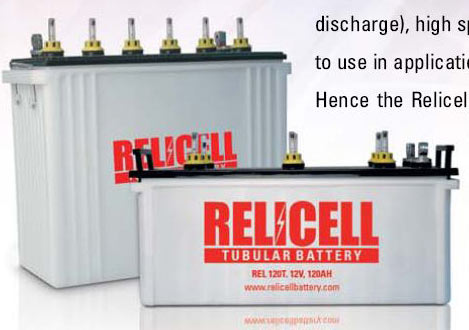

Tubular Battery

The company has come up as a dependable Dealer of Tubular Battery. Tubular Battery (Relicell Long Life Tubular) is specially designed to withstand long and frequent power cuts with very low maintenance requirements. Tubular Batteries are manufactured at state-of-the-art ISO 9001:2000 certified factory using the latest high pressure casting technology for better performance and durability. Further, the Tubular Battery is made in compliance with BIS 13369 – 1992.
Details :
Relicell Tubular Batteries have a long cyclic life span (more than 1000 cycles at 80% depth of discharge), high specific energy and low self-discharge rate. Tubular Battery is ideally suited to use in applications that require deep cycling under extreme operating conditions. Hence, Tubular Battery is the ideal companion for the Inverter or UPS during prolonged and frequent power cuts. All Relicell tubular batteries are supplied in factory charged condition thereby ensuring quality and optimum life. The company has an extensive service network across India to offer support for the products sold.
Features :

• Tubular positive plates made from highly corrosion resistant lead alloy

• Strong & rugged translucent PP Container with heat sealed cover with handles for easy lifting.

• Micro porous aqua trap ceramic vent plug with electrolyte level indicator.

• Prevents acid mist coming out from cells.

• Deep Cycle Design with low maintenance.

• High porosity PE separators provide low electrical resistance and prevent oxidation.

• Superior active material for excellent discharge performance.

Details :

• 42 months warranty

• First 30 months : Free repair and replacement.

• 31st to 42nd month : Replacement at 40% discount on the prevailing MRP. Warranty is subject to the conditions mentioned in the Warranty Card.

Applications :

• Inverters & UPS

• Solar & Wind energy storage

• Telecommunications power supply

• Emergency lighting

• Office Automation Equipment

Initial Charging And Filling Instructions :

• Fill battery grade sulphuric acid in all the cells upto the specified levels.

• Acid specific gravity should be 1.250 0.005 at 27^o C.

• Charge to be initiated after at least 4 hours of initial soaking period.

• Charge the batteries with constant current as indicated in the table until battery voltage reaches above 15.6 V and for a minimum of 12 hours.

• Full charged specific gravity should be adjusted to 1.2500.005 at 27^o C.

• Ensure that the cell temperature never goes beyond 45^oC during charging. If it goes higher reduce the rate and continue charging.
