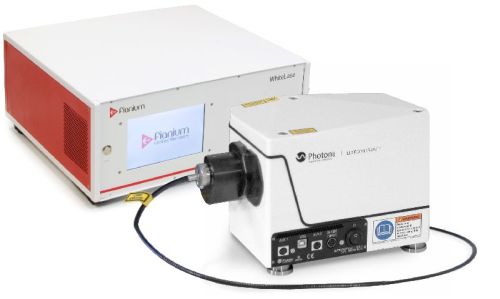

Tunable Laser Source (TLS)

₹ 36.40 Lakh - ₹ 1.23 Cr / USD

Spectral power density with a 8W< 2-5 mW (VIS), 5-9 mW (SWIR)
Scanning speed35 ms stabilization time for 0.1 nm step
Spectral range400 - 2300 nm
Wavelength400 - 2300 nm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Beam diameter2 - 5 mm
Pointing stability< 1 mm lateral displacement @ 1m from filter
Spectral power density with a 8W< 2-5 mW (VIS), 5-9 mW (SWIR)
Peak efficiencyAround 60%
Spectral power density with a 4W< 1-3 mW (VIS), 2-5mW (SWIR)
Input powerUp to 20W
Wavelength400 - 2300 nm
Bandwidth< 5 nm to < 2.5 nm
Scanning speed35 ms stabilization time for 0.1 nm step
WeightAbout 15 lbs
Wavelength resolutionFWHM / 8
Spectral range400 - 2300 nm
Out-of-band rejection< -60 dB @ +/- 40 nm (VIS)

Our turn-key sources unite the flexibility of Fianium, NKT Photonics and Leukos supercontinuum technologies to the incomparable out-of-band rejection of our optical filters, allowing easy and precise sample excitation or instrument calibration. Characteristics: - free-space or fibre coupled - pico- or nanosecond sources - up to 20 W input power
