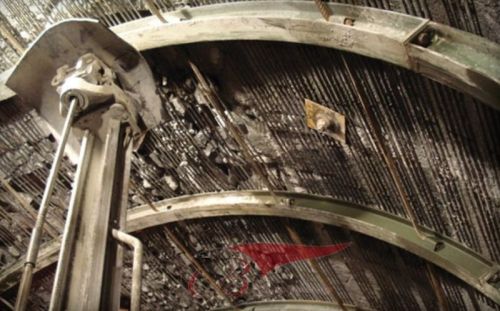

JB Engineering Iron Tunnel Support System, For Construction Use, Color : Black, Silver, Client Specifications

JB Engineering Manufactures Scaffolding & Form work Materials at the factory in Distt Una Himachal Pradesh INDIA by making use of sophisticated machinery and procedures to ensure that all products meet the required specifications as determined by the Clients.

We pride ourselves in custom designed products for our clients. JB Engineering never compromise on safety and quality and guarantees that:

 All products are manufactured from The BIS Confirming steel.

 Welders all have the rich Experience & relevant certification.

 Refurbishing is done with the strictest control

 Our service levels are of the highest standards

 Quality The Quality Manual used by JB Engineering contains policies and guidelines relevant to the functions and operations which have an effect on the quality of the products, services & processes to ensure conformance to specified requirements. We follow the guidelines as per the quality standards set up by BIS 3696 -2 and International Quality Standards.

Pipe Umbrella System--Ground Engineering Fore Poling Technology.

JB Engineering Pipe Umbrella System is a pre-support measure used in weak ground conditions in conventional as well as mechanized Tunneling. Long fore poling using the pipe umbrella or canopy method is typically applied to increase safety and stability in the working area of standard advance operations, portals, and for re-excavating collapsed sections. Another application is ground improvement and waterproofing in combination with all tunnel construction methods.

JB Engineering Pipe umbrella pipes – installed into the ground prior to excavation – increase the stability in the working area by transferring loads in the longitudinal direction and decrease excavation induced deformations. JB Engineering has developed a superior pipe connection type, which allows the reduction of installation cycle times while increasing the load-bearing capacity. State-of-the art pipe umbrella support systems are installed self-drilling where the casing provides an immediate support of the borehole, compared to outdated pre-drilling systems where borehole drilling and pipe installation takes place in two different working steps.

Fully mechanized installation is becoming a mandatory safety standard in the global Tunneling business. JB Engineering is the leading system supplier in the development and application of safe and efficient pipe umbrella installation technology.

JB Engineering system comprises steel pipes installed from the tunnel face to form a roof to stabilize the tunnel headings. By distributing the load in longitudinal direction, it can decrease deformation during excavations.

Fields Of Application:

❖ Advances in Weak or Sheared Grounds

❖ Ground Conditions Prone to Subsidence

❖ Advances in Fault zones, sediments Frequently Changing Ground Conditions

❖ Portal Section

❖ Re-Excavation of Collapsed Drifts or Tunnels

❖ Urban Tunnelling

Advantages:

❖ Immediate support for the excavation tunnels

❖ Strong and robust support system

❖ Strong Safety due to Fully Mechanised Installation

❖ Installation with Conventional Drilling Machines

❖ Piecewise Pipes Installation Allows Flexible Lengths

❖ Simple Application in Confined Spaces

❖ Superior Load Bearing Capacity of Innovative Pipe Couplings.
