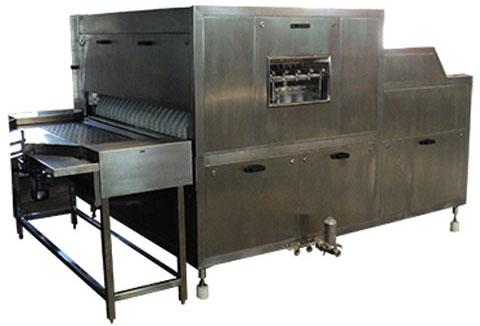

Tunnel Washing Machine

This machine is preferred for higher outputs requiring several washing options with respect to a wide range of washing media suitable for glass/PET bottles.

The unpacked bottles are loaded on the platform and aligned in rows on a wire mesh conveyor. These are then automatically fed into the bottle holders. Here, the system works on an intermittent sequence that handles individual rows for internal and external wash as per the users' convenience. The washed bottles are then automatically unloaded on the conveyor which is connected to the turn table. This ensures a continuous sequence of feeding the bottles into the filling sequence.

The machine conduction is S.S.304 (cladding) & the contact parts are made of S.S.316.

• Rigid construction & User friendly
• Washing cycles can be adjusted as per customer requirement
• No change parts for size of 30 ml - 250 ml bottle
• Safety clutches for overload
• Washing chambers having collection tray & recirculation system
• PLC with Touch screen for easy maneuverability of machine
• In feed wire mesh conveyor 1000 mm long

• Infeed loading platform made in SS 304
• One metre wire mesh conveyor at outfeed side
• Turn table at outfeed side
• Jump protection device for PET bottles
