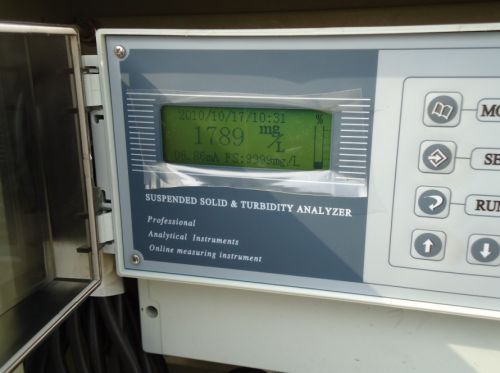

Contact SupplierWe offer Turbidity Meter.
Echnical Parameters:
Measuring Range:Activated sludge, 0 ~30g/L
Silica,0~100 g/L
Display:LCD
Units of Measurement:g/L and mg/L (Optional)
Resolution:0.01%
Accuracy:±1.0%FS
Repeatability:±1.0%
Power: ≤15 W
Analog Output:4~20mA、load 750Ω
Switch Output:2 relays、capacity 220VAC/2A
Power Supply:AC220V±10%
Sensor:
Material:316 stainless steel
Cable:shielded cable
Installation:Immersion, pipe plug-in
Process Connection:ZG1
Dimensions:Φ50×96mm
Medium Pressure:≤3 bar
Signal Cable:10M(standard configuration)Can be extended
Degree of Protection:IP68
Operating Temperature:Sensor:-20~60℃.
