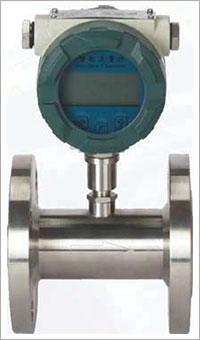

Turbine Flowmeter

UsageWater, Diesel, Gasoline, Oil etc.
Ambient Temperature-20 to +60 deg C.
Meter sizeDN 4 to DN500
Operating Pressurefor threading connection - 16 bar to 400 bar / for flange connection - as per flange rating
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

UsageWater, Diesel, Gasoline, Oil etc.
Operating Pressurefor threading connection - 16 bar to 400 bar / for flange connection - as per flange rating
Ambient Temperature-20 to +60 deg C.
Meter sizeDN 4 to DN500
Fluid Temperature-20 to +120 deg C.
Flow0.04 - 0.25 to 400 - 4000 m3/h

EUTURB consists of a multiple-bladed rotor mounted in a pipe, perpendicular to liquid flow. Liquid flows through the pipe causing a rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. Pulses are counted & 4-20 mA gets generated with the use of converter.

Performance

Repeatability	:	±0.2%
Accuracy Standard	:	±1% of reading

Wetted Components

Body	:	Standard SS304 (optional SS316)
Bearings and Shaft	:	Tungsten Carbide
Rotor	:	Standard - 2Cr13 Stainless Steel (optional Alloy CD4Mcu)
Retaining Rings	:	SS316

Power supply, Protection

Power Supply	:	24 VDC / Battery operated
Flow, Totaliser display	:	optional
Transmitter	:	4 to 20 mA DC current signal
Housing	:	non ex. Proof / ex. proof
Protection	:	IP65
