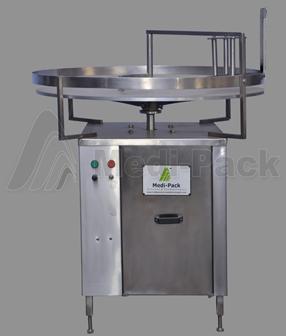

Turn Table

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Stainless steel scrambler & un scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable....

View More Details

Send Enquiry

Company Information

Medi Pack Process Technologies

Sardar Patel Ring Road, Ahmedabad, Gujarat

View Number

Member Since 12 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Stainless steel scrambler & un scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to ensure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line.

Operation :

Container inputs in turn table by manually or automatic will rotate on disk of turn table and exit through outlet, during rotation of container will guided by a SS strip, which will guide the container towards outlet path.

Salient Features :

Construction AISI S.S. 304 quality.
Three step pulley for different speed.
Special self-aligning bearings ensure smooth and trouble free operation.
Suitable for different type of container.
S.S. elegantly matt finished body.
Reduction gears ensure jerk free and noiseless operation.
Matt Finished body.

Optional Features :

Castor Wheel with lock.
A/c Frequency Drive.
Acrylic Cover.
Tray for loading or unloading of container.

Technical Specifications :

Model :	MPTT - 30	MPTT - 36	MPTT - 42
Direction :	Clockwise / Anti clock wise as per requirement
RPM of Disk :	4/5/6 through step pully
Power Characteristics :**	0.5 HP/415 V/50 Hz
Height of Disk :**	860 mm to 910 mm
Machine Dimensions :**	780 x 780 x 1160	925 x 925 x 1160	1076 x 1076 x 1160
Case Dimensions :**	975 x 975 x 1300	1125 x 1125 x 1300	1300 x 1300 x 1300
Net Weight :	150 Kgs.	175 Kgs.	200 Kgs.
Gross Weight :	300 Kgs.	350 Kgs.	400 Kgs.
Input Specifications
Container Size :**	Round Container	Ø 22 mm to Ø 100 mm Respectively height 58 mm to 240 mm (Height option for other bottle height available)
** Can be supplied as per customer requirements.
