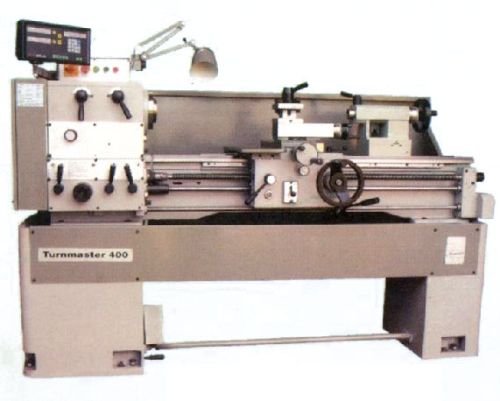

Contact SupplierTurnmaster-400 All Geared Head Lathe Machine is one of our highly demanded products. Turnmaster-400 All Geared Head Lathe Machine comprises Hardened and Ground Bed, AmericanA2-6 Spindle Nose, R.H. Hand Wheel Apron, Square Tool Post and Electrical item suitable for 415'1, 5hp, 50 cycles with 3.7 kw Motor. Turnmaster-400 All Geared Head Lathe Machine fulfills all specifications desired by buyers. Turnmaster-400 All Geared Head Lathe Machine is very user friendly.
Equipment Included In Turnmaster-400 All Geared Head Lathe Machine
Range of Models
Capacity. | ||
---|---|---|
Height of the Centres | 200 (8") | |
Swing over bed | 400 (16") | |
Swing over Cross Slide | 250 (10") | |
Swing in Gap 'Y Ñ„' | 560 (22") | |
Distance in front of face plate in Gap 'X | 140 (5.5") | |
Diameter of face Plate in Gap | 510 (20") | |
Distance between Centres | ||
ABC 600 | - | |
ABC 800 | 800 (3 1") | |
ABC 1000 | 1000 (40") | |
ABC 1500 | 1500 (60") | |
ABC 1250 | - | |
ABC 1650 | - | |
ABC2000 | - | |
Cross SlideTravel | 185 (7.5") | |
Cross SlideResolution | 0.02 mm | |
Bed | ||
Bed Type | 2V,2 flat | |
Bed Width | 244 | |
Bed Length | - | |
ABC 600 | - | |
ABC 800 | 1700 (6') | |
ABC 1000 | 1900 (6.5') | |
ABC 1500 | 2388 (8') | |
ABC 1250 | - | |
ABC 1650 | - | |
ABC2000 | - | |
Main Spindle | ||
Spindle Nose | A2-6 | |
SpindleTaper Bore | Metric 45 | |
Taper Bore in Centre Sleeve | MT 3 | |
Spindle Bore | 55 | |
Tail Stock | ||
Quill Diameter | 50 | |
Taper Bore in Spindle | MT 3 | |
QuillTrave | 140 (5.5") | |
Tool Slide | ||
Travel Top Slide | 100 (4") | |
Tool Shank Section | 25x 25 | |
Tool SlideResolution | 0.02 | |
Lead Screw | ||
Lead Screw Diameter | 30 | |
Pitch | 6.0 | |
Speeds | ||
No. of Speeds | 8 | |
Range | 71-1600 | |
Feeds | ||
No. of Longitudinal Feeds | 24 | |
Range of Feeds | 0.045 to 0.063 | |
No. of Transverse Feeds | 24 | |
Range of Feeds | 0.015 to 0.21 | |
Ratio of Transverse Feed to Longitudinal Feeds | 1 // 3 | |
Threads | ||
No. of metric threads | 24 | |
Range | 0.5 to 7 | |
No. of inch threads | 24 | |
Range | 56 to 4 TPI | |
No. of Module Threads | 18 | |
Range | 0.25 to 1.75 | |
No. of DP Threads | 18 | |
Range | 16-112 | |
Maximum Weight of Workpiece held between Chuck and Tail Stock Centre | ||
Dead centre | 185 | |
LiveCentre | 150 | |
Electricals | ||
Main Motor | 3.7Kw | |
(5HP) | ||
Power Supply | 415V | |
3phase | ||
50 cycles | ||
NC supply NC supply | ||
Coolant Tank Capacity | 20 Itrs | |
Weight | ||
ABC 600 | - | |
ABC 800 | - | |
ABC 1000 | I000 kg | |
ABC 1500 | 1450kg | |
ABC 1250 | - | |
ABC 1650 | - | |
ABC2000 | - | |
Floor Space Lx B | ||
600 ABC | - | |
800 ABC | - | |
1000 ABC | 2200x850 (7.5'x3') | |
1500 ABC | 2100x850 (9'x3') | |
1250 ABC | - | |
1650 ABC | - | |
2000 ABC | - | |
Capacity of Steady Rest Bar Dia 'D' | ||
PadTyp | MinimumDia | 10 (0.5") |
Maximum Dia | 100 (4") | |
RollerType | MinimumDia | 10 (0.5") |
Maximum Dia | 75 (0.3") | |
Capacity of FollowRest Bar Dia 'D' | ||
PadTyp | MinimumDia | 10 (0.5") |
Maximum Dia | 100 (4") | |
RollerType | MinimumDia | 10 (0.5") |
Maximum Dia | 75 (0.3") | |
Capacity of taper Turning Attachment | ||
MaximumTaper Angle on either side | 10o | |
Stroke 'S' | 175 (7o) | |
MaximumTurning Length 'L' | 125 (5o) |
