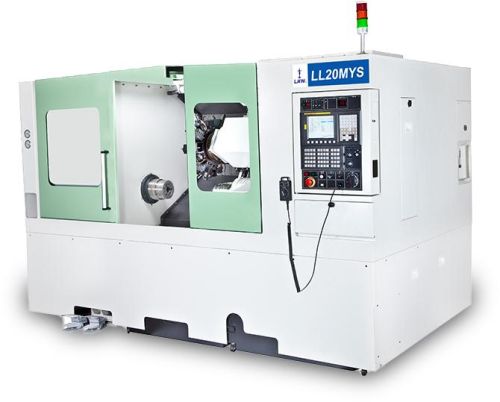

| DESCRIPTION | UNIT | LL20MYS L5 |
|---|---|---|
| CAPACITY | ||
| Swing over carriage | mm | 560 |
| Max. Turning dia | mm | 320 |
| Max.Turning Length | mm | 500 |
| MAIN SPINDLE | ||
| Spindle nose | type | A2-6 |
| Chuck dia. | Mm | 210 |
| Hole through spindle | Mm | 61 |
| Spindle speed | Rmp | 4000 |
| Spindle motor power | Kw | 7.5/11 |
| SUB SPINDLE | ||
| Spindle nose | Type | A2-5 |
| Chuck dia. | Mm | 165 |
| Hole through spindle | Mm | 53 |
| Spindle speed | Rmp | 4500 |
| Spindle motor power | Kw | 5.5/7.5 |
| FEED | ||
| Inclination Cross slide | deg | 60 deg to horizontal plane |
| Travel X- axis | mm | 162 |
| Travel Y-axis | mm | ±50 |
| Travel Z-axis | mm | 570 |
| Rapid traverse (X/Y/Z/W) | 30 / 15 / 30 / 15 | |
| LIVE TOOL TURRET (VDI 30) | ||
| No. of stations | nos | 12 |
| Tool shank size | mm | 20 x 20 |
| Max. Boring bar dia. | mm | 32 |
| Turret indexing | type | Servo |
| Turret indexing | Sec | 1 |
| Driven motor power | kW | 4.5 |
| CNC SYSTEM | ||
| Controller | - | Fanuc |
| MACHINE SIZE | ||
| Front x Side | mm | 3155 x 1855 |
| Weight | kg | 4800 |
