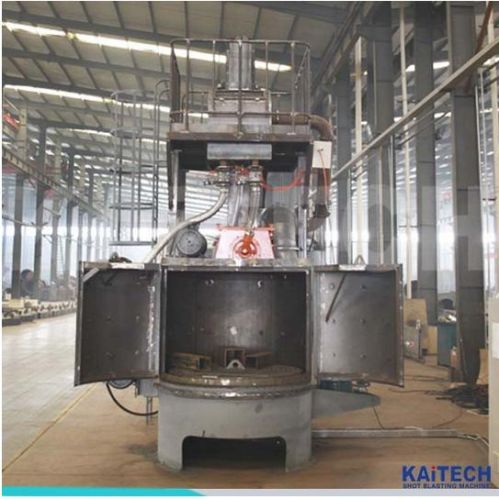

Turntable Shot Peening Machine, Certification : CE

We are offering turntable shot peening machine.
Detailed information:
qf3525e turntable shot peening machinesand blaster is characterized by compact structure, remarkable sealing effect,high production efficiency and easy loadingunloading since it is a high-tech product composed of reliable components.
1. Blast chamber
welded by steel plates and steel profiles, the blast chamber possesses excellent mechanical strength,
and it is lined with 10-mm-thick zcr5 plates at major blasting zones, while other positions are internally
protected by wear resistant rubber plates. All the lining plates are fixed by special nuts to simplify
replacement, and the two leaf door also uses wear resistant rubber plates as its lining materials.
2. Blast wheel assembly
the blast wheel assembly is an integration of blast wheel, turbine, v-belt and bed plate, and its position
and angle are determined by 3d dynamic simulation so as to offer complete coverage. For better product
quality, the blade, impeller and control cage are all made via precise investment casting.
3. Abrasive reclamation system
the turntable shot blasting machine’s abrasive reclamation system contains bucket elevator, sand
separator, abrasive silo, pneumatic valve, abrasive delivery chute, etc.
4. Work piece loading system
it is formed by turntable, drive mechanism and other auxiliary devices.
5. Dust removal system
our turntable shot blasting machine takes advantage of a three stage dust removal system to remove
dust. More specifically, large particles are separated first by settling box and cyclone dust extractor, and
finally a cartridge filter is used to remove over 99.5% of micron sized dust.
6. Electrical control system
this metal surface cleaning equipment adopts conventional electrical control, and its electrical devices
are famous brands in china. Thanks to the inter-locking function, stable performance is delivered in a
safe way.
