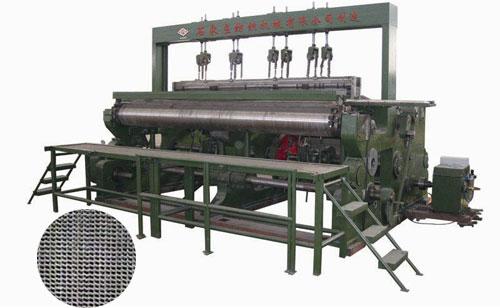

Contact SupplierTWA model wire mesh weaving machine, based on the frame of TW series copper mesh loom, is professional loom for weaving wire mesh. It is loom of mechanical, electrical,electronic integration. Strengthened by take up and let off driven mechanism, crank shaft six linkage double beating up system, the weaving machine is more stable and stronger…
Main constructions & Technical Parameters:
  1.Reed space: 3000mm-5000mm
  2.Shedding: Tappet cam shedding system, 4 pieces of heald frame.
  3.Beating Up: crank shaft six linkage lever double beating up system.
  4.Weft Insertion: shuttle weft insertion.
  5.Let Off: Mechanical positive let off mechanism.
  6.Take Up: mechanical model semi positive take up system.
  7.Driven: the whole machine is driven by pneumatic clutch and main motor system. The power of main
   motor is: 7.5Kw.
  8.Electrical control: fixed position stop machine.
  9.Speed: 30 rpm.
  10.Dimension: 3000×3000×6000(mm)
  11.Weight: about 20T.
