Twin Ring Wire Precut Machine

We are offering twin ring wire precut machine.

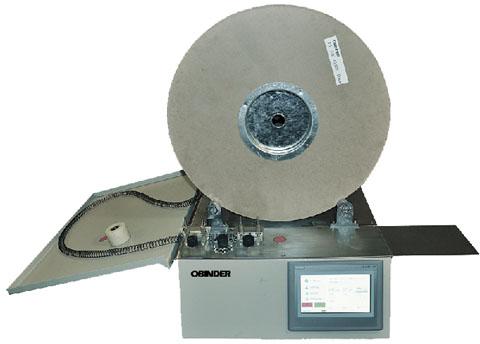

Spool twin ring wire precut machine
automatic cutting spool twin ring wire binding supply into customized ringspcs.
Obwc100 machine only need worker to do:
wire spool installed, suitable pitch gear installed, loop size and number per piece correctly selected, cutting position adjusted, choose automatic or sensitive or foot panel processing mode, start work.
Machine feed wire automatically, cuts a piece, stop, cut the second wire automatically;
count the loops and piece and cut it at a preselected number;
cutting position at the middle of two loops;
touch screen to choose speed, pitch size, set loops per piece, change control mode(automatic, sensitive, foot panel), adjust machine other action;
optional autosensitivefoot panel running.
Technical specification:
loop pitch: 3: 1 and 2: 1pitch; change pitch by change gear;
diameter of loop to cut: from 316''to 1-14'' size;
number of loop to cut: 5 min to no-limited; cut position free adjustable (able to manual control wire move forward and back accurate);
loop size:
3: 1pitch 316", 14", 516", 38", 716", 12", 916"
2: 1pitch 14", 516", 38", 716", 12", 916", 58", 34", 78", 1", 1-14"
designed for heavy duty working:
cut pieces counter: 1 to no-limited, resettable at any time;
cut loops counter: 1 to no-limited, resettable at any time;
plc control:
each task cut loops counter record;
machine lifetime cut loops record;
speed of feeding:
3: 1pitch size wire: 3000loopsminute;
2: 1pitch size wire: 2000loopsminute;
other specification:
cutting accuracy: approx. 0.1mm;
unwinding time of spool: max 2sec;
change pitch time: max 2sec, (simple to change gear);
change size time: max 2sec, (touch screen).
Power requirements
electrical (mains): 220-240v50hz, 0.5amp.
Dimensions
length * width * height (without the spool): 625 * 850 * 280mm;
weight: 75kg.
