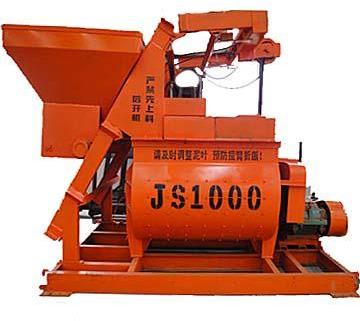

Twin Shaft Concrete Mixer

We are dealing in twin shaft concrete mixer.
Js500-1500 twin shaft concrete mixer can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. It is suitable for mixing stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
Features of js500-1500 concrete mixer:
1.as a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2.shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Description of js500-1500 concrete mixer:
js500-1500 concrete mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant
technical specification of js500-1500 concrete mixer:
parameter model
js500
js750
js1000
js1500
item
discharge volume
500l
750l
1000l
1500l
charging volume
800l
1200l
1600l
2400l
theoretical capacity
≥25m3
≥35m3
≥50m3
≥75m3
aggregate sizes
≤6080mm
≤6080m
≤6080mm
≤6080mm
working circle
60s
60s
60s
60s
mixing blade
speed
35rmin
30.5rmin
25.5rmin
23rmin
quantity
2×7
2×8
2×8
2×9
mixing motor
model
y180m-4
y200l-4
y225s-4
y225m-4
power
18.5 kw
30 kw
37 kw
45 kw
lifting motor
model
yez132s-4
yez132m-4
yez160l-4
yze180m-4
power
5.5 kw
7.5 kw
11 kw
18.5 kw
pump motor
model
50dwb20-8a
65dwb35-5
kqw65-100
kqw65-100
power
0.75 kw
1.1 kw
3 kw
3 kw
weight
1500kg
6150kg
9880kg
10960kg
dimensions (l x w x h)
3030x2300x2680 mm
4550x2250x2450 mm
4640x2250x2250 mm
5058x2250x2440 mm
