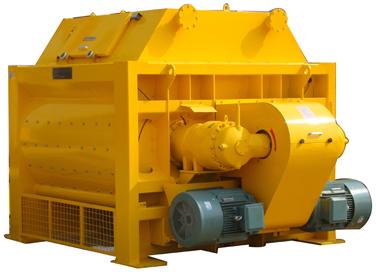

Twin Shaft Concrete Mixer, Brand Name : RP

We are offering js2000-4000 twin shaft concrete mixer.
Js2000-4000 twin shaft concrete mixer is ideal for mixing stiff-consistency concrete, semi-stiff-consistency concrete, plastic concrete and other kinds of concrete in different proportional ratios.
Features of js2000-4000 concrete mixer:
1.this concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2.shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3.opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.
technical specification of js2000-4000 concrete mixer:
parameter model
js2000
js3000
js3500
js4000
item
discharge volume
2000l
3000l
3500l
4000l
charging volume
3200l
4800l
5600l
6400l
theoretical capacity
≥100m3
≥150m3
≥180m3
≥200m3
aggregate sizes
≤6080mm
≤6080m
≤6080mm
≤6080mm
working circle
60s
60s
60s
60s
mixing blade
speed
23.1rmin
21.85rmin
21.85rmin
19rmin
quantity
2×9
2×10
2×11
2×10
mixing motor
model
y25m-4
y280m-6
y280m-6
y315s-6
power
2×37 kw
2×55 kw
2×55 kw
2×75 kw
weight
9200kg
11450kg
12000kg
19000kg
dimensions (l x w x h)
3810x2480x
1710 mm
4220x2620x1910 mm
4300x2680x1910 mm
4450x3050x 2380 mm
