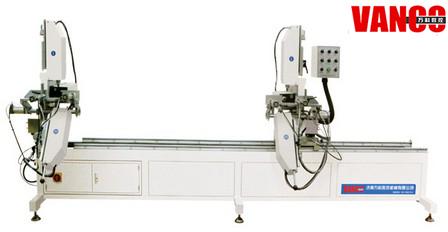

Two Head Automatic Water Slot Milling Machine

We are offering two head automatic water slot milling machine for pvc profile lxcz2a
function:
it is used to mill all kinds of water slot and air pressure balance groove.
Features:
1. Two or three axes milling heads layout along the machine guide, designed with high rigidity, high processing quality.
2. Two water slots of both ends of profile are processing in one time clamping.
3. High efficiency, suitable for mass production.
4. Special feeding system, need no special maintenance, high milling quality.
5. Convenient adjustment for the cutter position to meet different kinds of profiles.
6. Water slot milling length adjustable within 60mm, wide adaptability.
7. Adopt linear bearing motion to ensure the processing precision in a long term.
Technical parameter:
air pressure: 0.5~0.8mpa
air consumption: 40lmin
power supply: 220v50hz
input power: 2.28kw
main spindle revolving speed: 25000rmin
cutter diameter: ï�5mm, ï�8mm (optional)
max. Slot depth: 30mm
slot length: 30mm~60mm
dimension: 3800mm*1200mm*1800mm (l*w*h)
weight: 900kg
