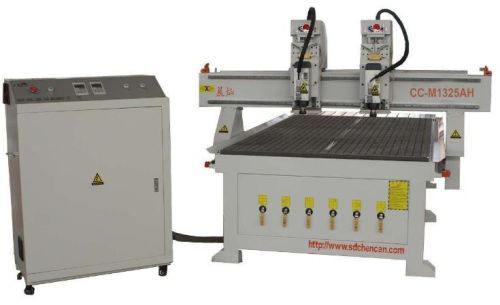

Two Heads CNC Router

Double head cnc router
model:cc-m1325as
features:
1. Two spindles can be working synchronously as well as separately.
2. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
3. The machine adopts gantry movement, it can process any kinds of materials freely.
4. Adopts germany-made ball-screw on z axis, having the character of high precision and long life time. Xy axes adopt rack and pinion transmission, having character of fast working, high efficiency and low cost.
5. Well compatibility: cad/dam designing software e.g. Type 3/artcam/castmate/wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Adopting advanced dsp system with usb connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
applicable industries:
wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
applicable materials:
wood, aluminium board, plastic, density board, wave board, glass, pvc, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
processing effect:
it can manufacture the following effects: relief, shadow, enchasement and so on.
Technical parameter:
description parameter
x,y working area 1300*2500mm
z working area 200mm
table size 1440*3040mm
resolution 0.01mm
lathe structure seamless welded steel structure
x,y structure rack and pinion transmission, hiwin square guide rail
z structure germany-made rolling ball screw, hiwin square guide rail
max. Idling speed 35m/min
spindle 3.0 kw per spindle
spindle rotate speed 0-24000r/min, variable speed
working voltage ac380v/50hz
working mode stepper
command g code (hpgl,u00,mmg,plt)
operating system dsp with usb interface
diameter of cutter φ3.175-φ12.7mm
cooling mode air-cooling
dust-collect function yes
work-holding by suction or clamp
software type 3, artcam, wentai
