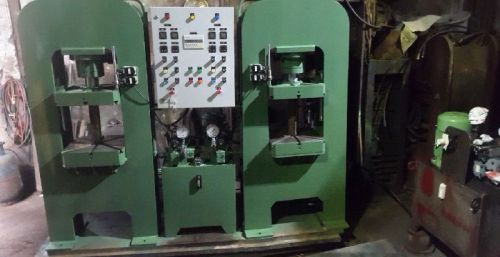

Satish Hydraulic Co.Pvt.Ltd. presses come in various tonnage capacities Two in One Down Stroke Hydraulic Press for Backlight, Plastic, Ceramics and Abrasives , Rubber , Moulding, Pressing jobs as per customers requirements.The presses can be supplied from 35 To 3000 Tonnes capacity or even more as per individual requirements.
The presses are supplied as complete units fitted with High Pressure Pump with Electric Motor, Pressure Gauge, Air Gauge, Limit Switch, Control Valve, Starter Oil tank(without oil), Micro switch, Roller Switch, Electric Panel Board etc.
Specification:
| Capacity | Type | Platen Size | Stroke of Piston | Open Daylight Distance | Diemeter of Piston | Ram Dia | Electric Motor | Operation |
|---|---|---|---|---|---|---|---|---|
| 35 Ton | Frame | 457 mm x 457 mm | 300 mm | 450 mm | 115 mm | 92 mm | 3 HP | By PLC |
| 50 Ton | Frame | 500 x 500 | 300 mm | 500 mm | 140 mm | 115 mm | 5 HP | By PLC |
