Two Post Car Lift, Brand Name : Suto

We are offering two post car lift.electrical release garage lift equipment
* 5mm “international standard” column steel plates made in shanghai.
* 8mm brace arm and 6mm internal sliding column, never deform.
* wearable, anti-high temperature, high strength oiliness macromolecule nylon slide block.
* require no less than 150mm cement on the ground, at least c25.
* double safe antiskid device, from column ladder safe to close protection by dynamic hydraulic pressure, single side electrical release, ensure double safe staying for vehicles.
* abs control box, 24v operation system, manual lock release for emergency lowering valve.
* endure max 5 t destructive testing , fulfill 3.5t4t actual working conditions.
* chain style pulling device.
* total mold tooling technology, to ensure the conformity of both many a holes and welding places.
* digital control raw materials processing center ensure the discrepancies at % stage & product consistency.
* double cylinder dynamic hoist drive device, capacity is more than 3.5t4t.
* aluminum pump device , running time without any break down for at least 40,000 h.

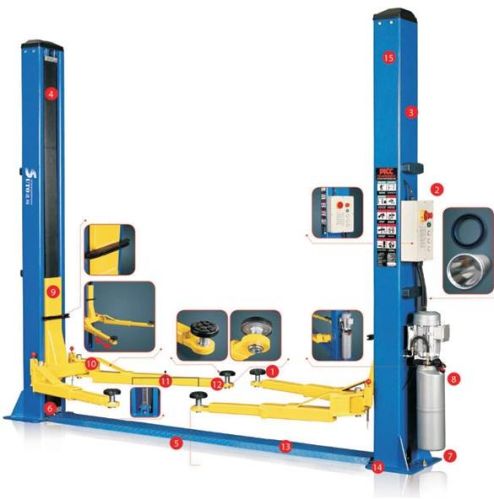

Red points in picture:
1. Tray
2. 24vce standard abs control box
3. Top limited switch
4. Wire rope anti-shedding device
5. Height from the ground min: 100110140mm max: 1900mm
6. Chain anti-shedding device
7. Tubing explosion-proof device
8. Hydraulic cylinder process to create a mirror-polished surface, to achieve the level of mirror.
9. Slide square tube adopts 5mm international standard.
10. International q235 16mm
11. 6mm ( inside and outside ) tube thickness
12. Solid 25mm toe board
13. Q235 international 4mm checkered plate, and bottom with angle iron welded reinforcement, so that car would not deformed.
14. Q235 international 16mm board.
15. The ss400 international standard 6mm opened tablet column.
