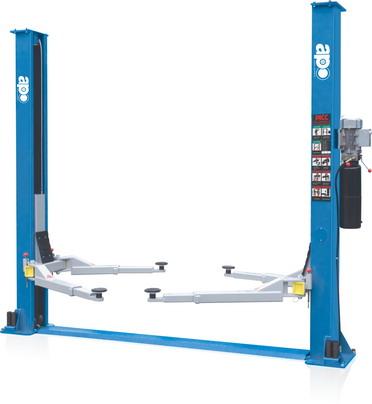

Two Post Lift

Features:
strong
1,5mm "international standard" column steel plates ;
2,8mm brace arm and 6mm internal sliding column, never deform ;
3,wearable, anti-high temperature, high strength oiliness macromolecule nylon slide block ;
4,require no less than 150mm cement on the ground, at least c25
safety
5,double safe antiskid device, from column ladder safe to close protection by hydraulic pressure, ensure double safe stay for vehicle ;
6,equipped crash-proof pad to protection car door;
7,endure max 5 ton destructive testing, fulfill 3.5t actual working conditions;
8,chain style pulling device, make the security parameter up to 5 times;
quality
9,total mold tooling technology, to ensure the conformity of both many a holes and welding places;
10,digital control raw materials processing center ensure the consistency;
power
11,double cylinder dynamic hoist drive device, capacity is more than 3.5ton;
12,optional revolving support leg and connected sleeve support;
13,gum rubber support leg pad, the endurability 3 times higher than the common materials;
14,aluminum pump system;
15,mechanical lowering control hydraulic pressure configuration, simple, endurable and reliable
technical data:
model： lm2mf-35 lm2mf-40
structure floor plate floor plate
capacity(kg) 3500 4000
lift height(mm) 1800 1800
rise time(s) 50 52
drop time(s) 22 22
power of motor(kw) 2.2 2.2
power supply(v) 380/220 380/220
machine height(mm) 2826 2826
machine width(mm) 3200 3200
frame width(mm) 3420 3420.
