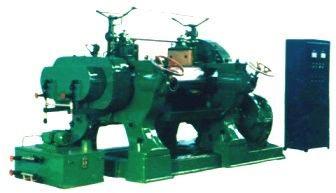

    Two Roll Mixing Mill A Type Machine

    ₹ 3.98 Lakh - ₹ 8.05 Lakh / Set
    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All Countries Except India

    Located in China, we are the eminent Manufacturer, Supplier and Exporter of Two Roll Mixing Mill A Type Machines in the global markets. A mix of advance and tough compounds is used in the fabrication....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 10 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 1996

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    Located in China, we are the eminent Manufacturer, Supplier and Exporter of Two Roll Mixing Mill A Type Machines in the global markets. A mix of advance and tough compounds is used in the fabrication of these machines resulting in their silent and trouble-free operations. It is obtainable to worldwide clients at competitive rates. Distance cannot deter us from making swift deliveries of even bulk orders.


    Applications : The machine is used for plasticizing ,mixing and sheeting of plastics and rubbers Features -

    • The rollers are made of chilled alloy cast iron with wear-resistant hard surface. The cavities of rolls are machined.
    • Overload protection devices are provided to protect the main parts from damage due to overload.
    • The reverse current plugging system is provided above the rolls. In case of emergency. The safety rod is pulled down and the rolls will be stopped immediately.
    • The roll gap can be easily adjusted by hand wheel.
    • The bed-plate of the machine is integral. The installation of the machine is simple


    Technical Specifications

    Type

    XK-150

    XK-250

    XK-300

    XK-360

    X(S)K-400

    X(S)K-450

    X(S)K-560

    Working diameter of rolls (mm)

    Ø150

    Ø250

    Ø300

    Ø360

    Ø400

    Ø450

    Ø560/510

    Working length of rolls (mm)

    320

    620

    750

    900

    1000

    1200

    1530

    Working linear speed of front roll(m/min)

    8

    15.1

    15.1

    16.25

    18.65

    24.5

    27.7

    Max gap (mm)

    10

    101010151515

    Capacity per. batch(kg)

    1-2

    10-15

    15-20

    20-25

    18-35

    25-50

    50-65

    Driving motor power(kw)

    7.5

    18.5

    22

    30

    37

    55

    95

    Overall dimension (mm)  (L)

    1080

    3400

    3580

    3940

    4250

    5200

    6120

    (W)

    796

    1350

    1550

    1780

    1850

    2380

    2280

    (H)

    1415

    1500

    1695

    1740

    1870

    1770

    2000

    Weight (kg)

    1100

    3500

    5205

    5670

    7600

    13000

    22000

    Notes

    Bearing  Nylon bush grease LUB    Copper sleeve oil LUB
