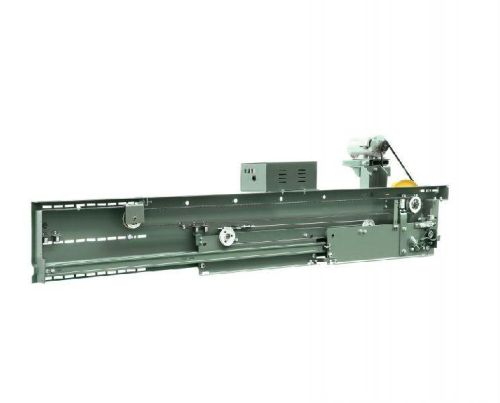

Two-speed Door Elevator Operator

Name: XD1407A Door Machine Corresponding To: XD1207 Two-speed Landing Door Device NO.: XD1407A Function: Car Door Lock Function Operating Voltage In Variable Frequency Mode: AC 220V XD1407A Door Machine Corresponding to XD1207 two-speed landing door device AC variable frequency and voltage regulation control Special interface is connected with elevator system for variable frequency control Operating voltage in variable frequency mode: AC 220V Car door lock function Directly mounted on straight beam of the car The figure indicates left opening, and the right opening is manufactured symmetrically [C" is the distance between the inside of straight beam and fast-door borderline Two-speed Door Operator For Elevator , Side Opening , XD1407A Net Door Opening Width Machine Length(mm) 700 1260 800 1410 900 1560 1000 1710 1100 1860 1200 2010 1300 2160 1400 2310 1500 2460 1600 2610 1700 2760 1800 2910
