Two Stage RC Coupled Amplifier Using Transistor (BJT) SD-121

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

This has DC +12V/500mA Fixed Power supply, Two single stage CE Amplifier using NPN transistor BC548/148 with voltage divider biasing interconnected such that the O/P of first stage is connected ....

View More Details

Send Enquiry

Company Information

SINCOM Sindhu Electronics & Communications Pvt. Ltd.

Pratap Nagar, Nagpur, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 27AANCS0623H1ZC

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

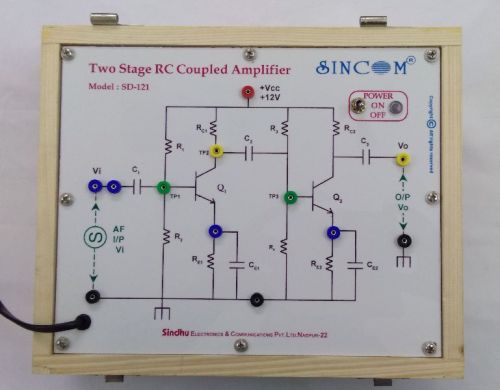

This has DC +12V/500mA Fixed Power supply, Two single stage CE Amplifier using NPN transistor BC548/148 with voltage divider biasing interconnected such that the O/P of first stage is connected to the input of second stage CE amplifier through RC network.
Objectives :

To Study the Transistor as a CE Amplifier.
To Study the Two Stage RC Coupled Amplifier using Transistor.
To Observe & Note change in O/P of second stage w.r.t. change in I/P Freq. of first stage.
To Plot the frequency response & Determine Bandwidth. To Calculate Voltage gain of each stage & Overall Voltage Gain of circuit & to verify AV = AV1 x AV2

Accessories Included : Set of Patch Cords, Operating Manual.
