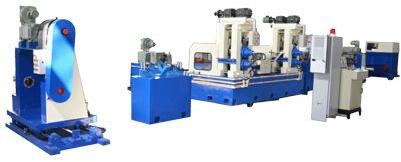

Two Stand Copper Rolling Mill

DRO unit is provides which helps the operator’s initial setting time and also it helps in reducing the scrape percentage. Internal and external cooling system is provided which increases the efficiency of the roller, avoid oxidation of the conductor and machine speed can be increased.
Anti-back lash ball screws with servo motors are used for roller up down movement and the edger’s sideways movement to achieve higher accuracy. Wiper system is provided for cleaning the conductor after rolling by compressed dry air.
Width thickness gauge used for auto correction of width and thickness works on LASER beam technology with an accuracy of 0.001mm. The last stand is oquipped with anti backlash ball screws and servo motors.
BOBBIN MOVING TAKEUP / WINDING UNIT in which the whole unit along with the bobbin traverses. Due to which the conductor remains in the straight path line and no stress / strain is developed in the conductor. Due to the straight motion of the conductor the bend gets avoided which leads in perfect winding quality.
