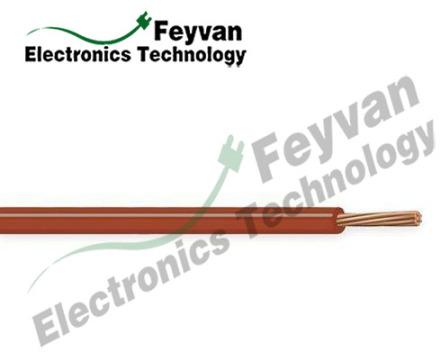

TXL- Thin Wall Crosslinked PE Automotive Wire

TXL automotive wire is the wire used by vehicle manufacturers for most applications, and is the thinnest, lightest and lowest cost compared with GXL and SXL wire. TXL wire typically features a bare copper conductor and is stranded for great flexibility, tough and long lasting with SAE J1128 and RoHS compliance. T means: Thin Wall XL means: Cross linked PE (XLPE) Technical Date: - Rated temperature: 125℃ - Rated Voltage: 60V DC - Reference standard: US standard SAE J1128 - Conductor: Stranded annealed bare copper - Insulation: XLPE compound especially for automotive - Uniform insulation thickness to ensure easy stripping and cutting - Resistant to heat, oil, abrasion and cold AWG Conductor Nom. Thickness mm Finished Wire Diameter mm Max. Resistance At 20℃ Ω/km      No./mm  Cross Section      mm2 20 7/0.32 0.50 0.40 1.80 32.7 18 19/0.23 0.80 0.40 2.00 24.4 16 19/0.28 1.00 0.40 2.30 14.3 14 19/0.35 2.00 0.40 2.60 8.8 Package options:
