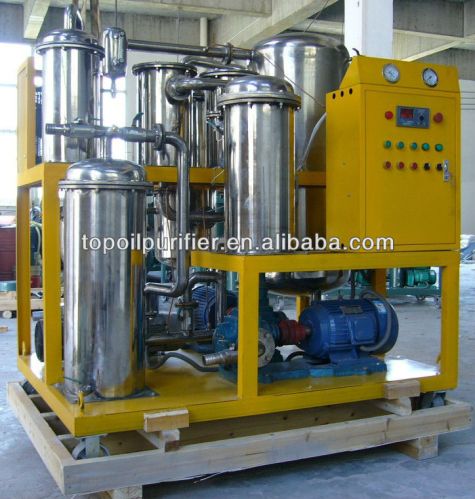

TYF Series Phosphate Ester Fire Resistance Oil Purifier

Application
TYF purifies and regenerates the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. It can be online working and for oil-filling.
Application
TYF purifies and regenerates the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. It can be online working and for oil-filling.
Features
1. Use of special metal material compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent
2. Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.
3. Duplex-Stereo film evaporation technologywith unique and advanced dewatering, degassing components to effectively remove water, gas, particles and volatile matter.
4. Advanced medium cooling system
Technical Parameters
Parameters Unit TYF-10 TYF -20 TYF -30 TYF -50 TYF -100 TYF -150 TYF -200 TYF -300
Flow rate Lhr 600 1200 1800 3000 6000 9000 12000 18000
Vacuum degree Mpa -0.06 ~- 0.095
Working pressure Mpa
