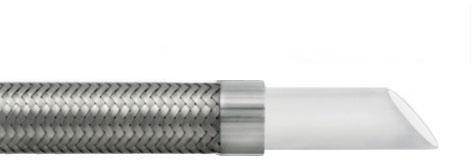

Stainless steel braid cover smooth ptfe tube
construction:
type tss is manufactured from smooth ptfe tubing with stainless steel over braid.
Temp. Range: -70℃ and 260℃.
Applications:
for transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed bending radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
Certification: fda.
We also can provide type pss (pfa tube).
Part no. id od tube wall thickness bending
radius work pressure bursting pressure
in. mm mm mm mm bar bar
tss003 18" 3.2 6.2 1.00 60 250 750
tss005 316" 4.8 7.7 0.75 60 200 600
tss006 14" 6.4 9.2 0.65 75 185 555
tss008 516" 7.9 11.2 0.75 100 180 540
tss010 38" 9.5 12.4 0.75 125 170 510
tss013 12" 12.7 15.9 0.75 140 130 390
tss016 58" 15.9 19.3 0.90 160 100 300
tss019 34" 19 22.8 0.90 200 75 225
tss022 78" 22 26.0 1.00 300 65 195
tss025 1" 25.4 29.5 1.05 400 65 195
