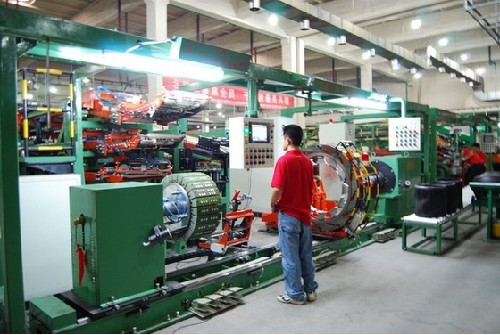

Tyre Building Machine

We offer pcr radial tyre building machine-rubber machine
1. The belt ply servicer uses a servo system control, reallized and initiative and stretch-free material servicing, automtic length setting and cutting as well as synchronous plying up.2. The clamp transfer ring unit moves smoothly, with accurate and reliable positioning, able to reallize the automatic tire unloading after stitching(which has to be used in cooperation with the collapsible drum)3. Several different types of shaping drums enable the clients with much greater selection sapce, including inner clips and collapsible shaping drums.4. The automatic distance variable laser positioning indicator projector offers a higher precision, reliability, simplicity, convenience and applicability.
Applicable rim diameter φ14''~ φ17’’
building drum width 260~600mm
height from mandrel center to floor 900mm
building drum diameter φ390 ~ φ465mm
type of assistant drum radial extension mode
control system plc&ac-servo converter and position interface
power and voltage ac380v±10% 50hz
air pressure ≥0.7mpa
