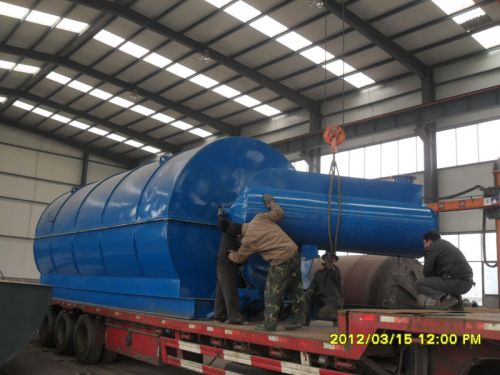

Tyre Recycling Oil Machine, Brand Name : DOING

We are offering tyre recycling oil machine.
tire pyrolysis/recycling plant after several processes like heating, cooling and so on, turns the waste tires and plastic into crude/fuel oil, carbon black and steel wires.
1.no polllution and safe
2.automatic welding
3.oil:45-52%,carbon black:35%
4.with iso&ce
5.long life and save labors
1)tyre pyrolysis/recycling turn "waste" into wealth.
tire pyrolysis/recycling plant after several processes like heating, cooling and so on, turns the waste tires and plastic into crude/fuel oil, carbon black and steel wires.
2)the usage of final productions
fuel oil--power plant factory
glass factory
cement factory
ceramic factory
aluminum factory
boiler factory
central heating factory
painting factory
carbon black--electric cable jacketing
conveyor ban
hose and doormat
black nylon bag
rubber additive
automatic spare parts
heat isolation
black colorant in rubber materials
plastic pipes
industies rubber
products
fire fighting
steel wires--be re-sale to steel factory
3)the formula of economic benefit analysis
the cost of 8 ton tire
a
oil output
b=8ton*45%=3.6ton
fule(coal):
c=0.8ton*price/ton
electricity :
d=15kw*20hour
wokers’salary
e=4(persons) *price/person
crude oil
f=8ton*45%*price/ton
carbon black
g=8ton*35%*price/ton
tires wire
h=8ton*10%*price/ton
if take waste truck tires as raw material,and dy-1-8 type as equipment;economic benefit analysis of dy-1-8 type equipment
1.daily cost:
a.raw material:8 ton*1700.00rmb/ton=13600.00rmb
b.fuel:0.4ton*800rmb/ton=320.00rmb
c.water and electricity:15kw*20hour*0.71rmb/kw=213.00rmb
d.workers’salary:4(persons) *50.00rmb/person=200.00rmb
e.tax(remark):free from tax for environmental protection equipment
f.total:14333.00rmb
2.daily turnover:
a.carbon black:8ton*35%=2.8ton*1500rmb=4200.00rmb
b.crude oil :8ton*45%=3.6ton*4500rmb/ton=16200.00rmb
c.tires wire :8ton*10%=0.8ton*2500rmb/ton=2000.00rmb
total :22400.00rmb
3.daily gross profit :
gross profit=daily turnover-daily cost=22400.00rmb-14333rmb=8067.00rmb
6)pyrolysis working process
1. Firstly, the raw material was put into furnace with auto feeder,thenseal the feed inlet system.
2. Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the combustion system .
the reactor will slowly heat, when the temperature reach around 150 degree celsius, it will produce oil gas .
3. Oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be designed to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
4. After finished oil produce ,the temperature of reactor will be down ,in same time ,carbon black will be discharged automatically.
5. Lastly, when the temperature fall to 100 degree celsius, worker could opened the door of reactor to discharge of steel wire .
6. Then can start to another batch working.
7) main features:
safety:
1. Professional sealing technology for cover, oil outlet
2. Heavy oil is separated which can avoid the problems of jam in later condensing
3. Vacuum system will prevent exhaust gas from going back to reactor and causing accident
4. Alarm, safety valves, thermometer, pressure gauge and safety valve
5. It is dangerous to burning exhaust gas (c1 to c4). In our process, it is transferred first through the safety device and a safety burning air muzzle
environment friendly:
1. Well water dedusting system with high pressure nozzle and environmental damper inside can avoid black smoke
2. The exhaust gas will be directly recycled for heating reactor, no gas pollution
3. Every junction of the reactor is in good sealing situation with professional sealing material
long service life:
1. Material: q245r special steel plate, thickness 14mm
2. The service life of the reactor will be 8 years
energy saving:
1. Well sealing for heatingsystem, no gas leak and saving fuel
2. The exhaust gas will be recycled for reactor heating
8) technical parameter
