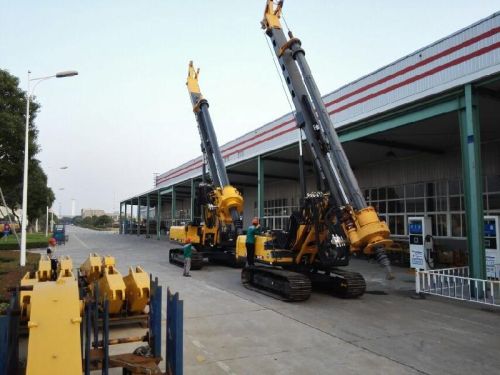

Hydraulic Automatic Tysim KR80A Rotary Drilling Rig 400mm-1000mm

Product description
1 pile drilling machine kr80a is small sized pile machinery by tysim designed.
2 leading the overall transport full hydraulic and can change transport state into working state rapidly.
3 use an imported cummins b3.9-c electrical fuel injection turbo engine (euiii).
4 high performance hydraulic system and components from international brands.
5 after-sale service is simple, with low failure rate.
6 makes the money for you and completes the construction requirements.
7 low noise and emissions.
8 high-performance hydraulic system and control system that guarantee efficiency.
Product specification models
torque 80 kn.m
max. Diameter 1000 mm
max. Drilling depth 28 m(4 node)22 m(3 node)
speed of rotation 8~30 rpm
max. Crowd pressure 90 kn
max. Crowd pull 120 kn
main winch line pull 80 kn
main winch line speed 80 mmin
auxiliary winch line pull 35 kn
auxiliary winch line speed 40 mmin
stroke(crowd system) 2000 mm
mast inclination(lateral) ã�â±3ã�â°
mast inclination(forward) 4ã�â°
max. Operating pressure 34.3 mpa
pilot pressure 3.9 mpa
travel speed 2.8 kmh
traction force 98 kn
operating height 12580 mm
operating width 2600 mm
transport height 3250 mm
transport width 2600 mm
transport length 9150 mm
overall weight 24 t
