U Guide Rail Shutter Door Steel Roll Forming Machine

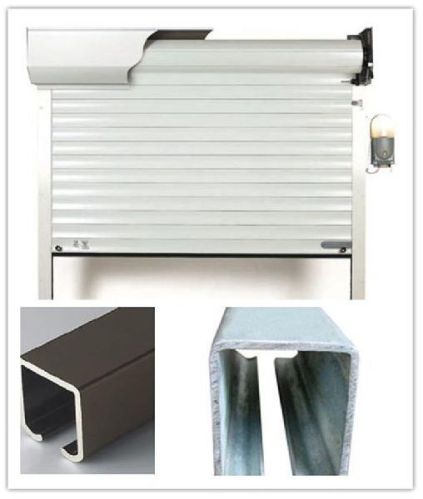

U Guide Rail Shutter Door Steel Roll Forming Machine The U guide rail produced by the U guide rail shutter door steel roll forming machine is usually used together with the shutter door profile . This rolling shutter machine is automatic controlled by the PLC . It consists decoiler , forming part , Cutting system , PLC control system . What is the work flow of the shutter door roll forming machine ? Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand  What is the Technical parameters of the guide rolling shutter machine? Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness:  0.8---2.0 mm Material hardness: 550 mpa---350 mpa Material width:  200mm(according to the profile) Formed width: 101.6mm (according to the profile) Forming speed: 12mmin Working speed :8mmin The detailed picture of the roll forming machine ? In order to help you know our machine much better. The following is the detailed pictures of the machine. Forming rollers Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating, 0.05 mm Main frame specification: 350 H steel.feature: More stable, no shaking The profile of the machine What is the production process of the shutter door roll forming machine? The following picture shows the whole
