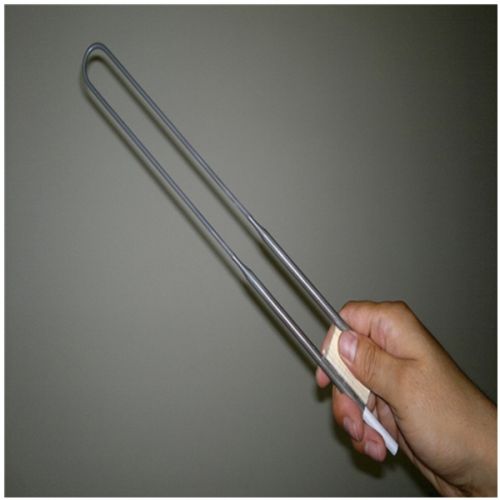

U Shape Molybdenum Disilicide Mosi2 Heating Elements

MOQ1 Piece(s)
ShapeI,U,W,etc
Max temperature1800c
Dimension3/6, 4/9, 5/10, 6/10, 6/12, 6/14, 7/14, 8/16, 9/18 to 12/24mm
Water absorption1.2%
Porosity rate7.4%
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

ShapeI,U,W,etc
Porosity rate7.4%
Max temperature1800c
Dimension3/6, 4/9, 5/10, 6/10, 6/12, 6/14, 7/14, 8/16, 9/18 to 12/24mm
Water absorption1.2%

We offer High Purity Mosi2 Heating Element 1800c.
Product Description
MoSi2 heating element is a kind of resistance heating element basically made of high pure Molybdenum Disilicide.
In oxidizing atmosphere,its Max temperature can reach 1800°C, and its applicable temperature is 500-1700C.
We make I shape,U shape, W shape, etc. Max temp: 1700c or 1800c
The dimension ranges from 36, 49, 510, 610, 612, 614, 714, 816, 918 to 1224mm.
Special request from customers is welcome.
Product Feature
Why do you choose our mosi2 heating elements?
1) Accept customized
2) Installation technical guidance
3) Inquiries answered within 24 hours
4) Pay for MoSi2 heating elements damaged in the transit
Product SpecificationModels
1.Volume density:5.5~5.6 gcm ³
2.Bend strength:15~25 kgcm ²
3.Vickers hardness:(HV)570 kgmm ²
4.Porosity rate:7.4%
5.Water absorption:1.2%
6.Hot extensibility:4%
Application
It can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.
Other Information
NOTE: MoSi2 heating element is fragile, please handle with care!

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union
Port of DispatchChina port
Packaging DetailsInner:foam board, carton External:wooden cases(without fumigation) Goods are packed in standard export packing, or according to your requirements
Delivery Timewithin 5 working days
