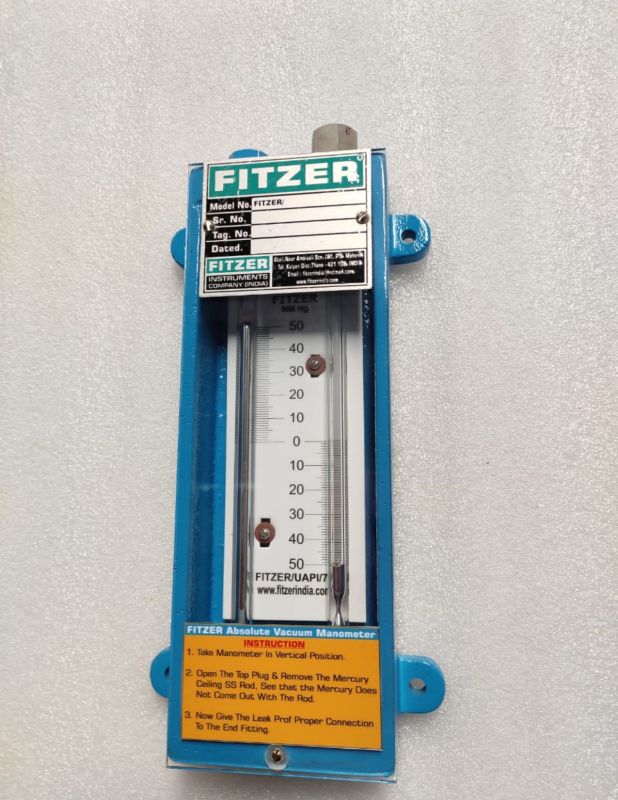

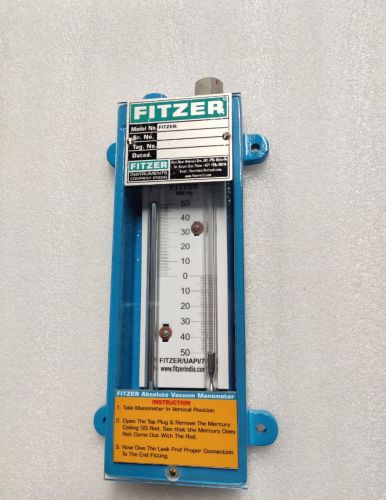

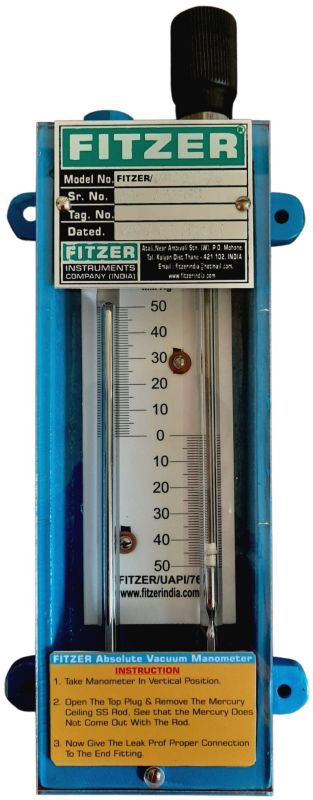

U Tube Absolute Pressure Mercury Filled Manometer

₹ 21,150 / Piece

MaterialAluminum Casing from three side and aluminum cover with transparent acrylic front.
Automatic GradeNA
GradeINDUSTRIAL
Display TypeMetering Tube: One end Sealed Mercury filled Special Uniform bore thick walled borosilicate glass
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 4 Years
Nature of Business Manufacturer
GST No. 24ACNPC1767D1ZW

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Connection1/4" BSP /NPT (F) OR Nozzle Type
TypeU Tube Manometer,U TUBE ABSOLUTE PRESSURE MERCURY FILLED MANOMETER
Country of OriginIndia
Rangemm of Hg,0 to 760 mmHg
Brand NameFITZER
MaterialAluminum Casing from three side and aluminum cover with transparent acrylic front.
ColorBlue
ConditionNew
Automatic GradeNA
Surface TreatmentMeter Body painted with Industrial Grade paint/Powder coated.
Pressure760 - 0 - 760 mmHg
ApplicationIndustrial Use, Calibration laboratories, HVAC & clean-room testing, Instrumentation and control systems,Absolute, Differential, and Gauge Pressure Measurement
Size1/4" BSP /NPT (F) OR Nozzle Type
GradeINDUSTRIAL
FeatureAccuracy, Easy To Fit, Measure Fast Reading, Perfect Strength, Robust Construction, Rust Proof, Accuracy: ± 0.25%, ± 0.1% of F.S.D.OR Better
Display TypeMetering Tube: One end Sealed Mercury filled Special Uniform bore thick walled borosilicate glass
Operating Temperature90 Deg.

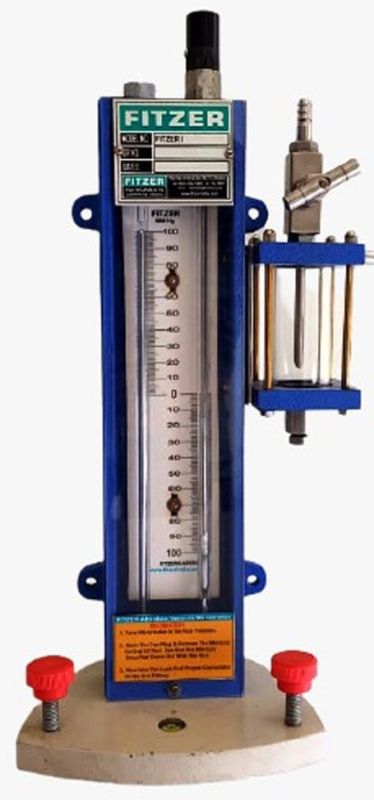

ArrangementCatch Pot
ScaleAluminum / Acrylic with engraved graduation
FinishingIndustrial Grade painted / Powder coated Teflon
FluidTriple-distilled Mercury
PackingTeflon / Neoprene.
CasingM.S. /Aluminimum Casing from three side and aluminium cover with transparent acrylic front
WarrantyOne year
Accuracy± 0.25%, ± 0.1% of F.S.D.OR Better
Measurement Range0–760 mmHg (customizable up to 2000 mmHg)
Pressure max.1.5 Time of Operating Pressure
Wetted PartM.S., S.S
MountingWall / Panel / Portable Stand
End Connection1/4" BSP /NPT (F) OR Nozzle Type
Tube MaterialBorosilicate Glass

Fitzer Incorporation offers precision-engineered U-Tube Absolute Pressure Mercury-Filled Manometers designed for accurate and reliable measurement of absolute, differential, and gauge pressure in laboratory and industrial applications.

In process of Chemical, Pharmaceuticals, Food Industries, Fertilizer, Oil Industries, Process Engineering Industries and where accurate measurement of absolute pressure vacuum require in its last stages.

The manometer consists of a transparent glass U-tube partially filled with high-purity mercury, providing a direct and visual indication of pressure difference. One leg of the tube is connected to the process pressure source, while the other is sealed under vacuum to measure absolute pressure with exceptional stability and repeatability.

Ideal for: Calibration setups, test benches, HVAC systems, fluid mechanics labs, and industrial process instrumentation.

Key Features:

High-accuracy absolute pressure measurement

Transparent borosilicate glass U-tube for clear mercury column visibility

Scale graduated in mmHg / cmHg / kPa / bar (as per requirement)

Mercury filling ensures stable readings with minimal temperature effect

Wall-mounting or stand-mounting options

Suitable for air, non-corrosive gases, and clean dry process applications

Compact, easy to maintain, and long-life design

Technical Specifications:

ParameterDetails

TypeU-Tube Mercury-Filled Manometer
