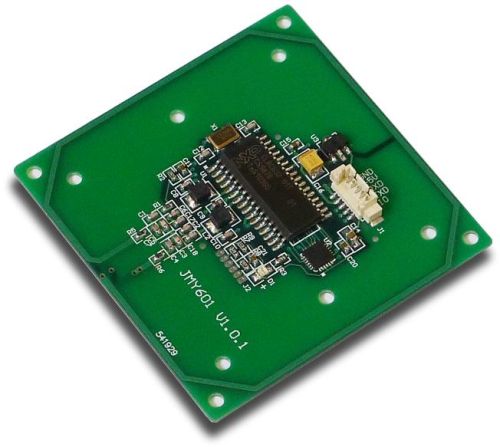

Uart Ttl Level Interface RFID Reader Modules

We are offering jmy601 uart ttl level interface rfid reader and writer modules etc.
jmy601 series are rfid readerwriter module with uart serial ports. Jmy601 has various functions and supports multi isoiec standard of contactless card; the cards from different suppliers. The rf protocol is complex. But the designer combined some frequent used command of rf card and then user could operate the cards with full function by sending simple command to the module through uart interface. The module and antenna are integrated design. The impedance between rf module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability.
qualifications:
•pcd: nxp rc531, rc632
•working frequency: 13.56mhz
•rf standard: iso14443a, iso14443b, iso15693
•operating distance: 80mm(mifare one, typical distance)
•anti collision ability: full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
•auto detecting card: supported, default off
•eeprom: 512 bytes
•interface: uart
•baud rate: 19200bps--115200 bps
•max.command length: 254 bytes
•interface level: 3.3v(ttl level; 5v tolerance)
•power supply: dc5v
•power consumption: 80ma
•dimension: 60mm×60mm×5.7mm
•weight: about 20g
•operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
•storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
