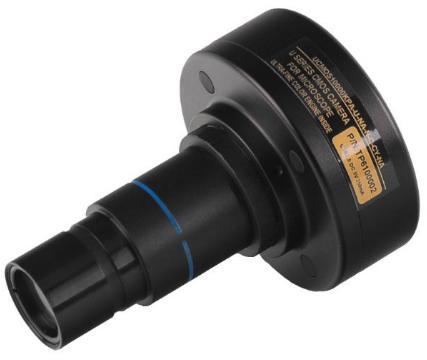

Sensor model: aptina mt9m111
scan mode: progressive
max. Resolution: 1280 x 1024 (approx. 1,300,000 pixels)
sensor size: 1/3 (4.60mm(h) x 3.70mm(v), diagonal 5.9mm)
pixel size: 3.6ã�âµm x 3.6ã�âµm
responsivity: 1.0v/lux-sec (550nm)
dynamic range: 71db
a/d converter: 10-bit, 8-bit r.g.b to pc
sn ratio: 44db
spectral range: 400-650nm (with ir-filter)
frame size and rate: 15fps @1280 x 1024, 26fps @640 x 512, 50fps @320 x 256 (multiple speed level)
binning: 1 x 1, 2 x 2, 4 x 4
exposure: electronic rolling snap(ers),0.140~2000ms,roi auto & manual
color rendering technique: ultra finetm color engine
white balance: one push roi white balance/ manual temp-tint adjustment
capture/control api: directshow, twain
capture mode: still picture and video
operating system: microsoftã�â® windowsã�â® xp / vista / 7 (32 & 64 bit) / max(os) / linux
