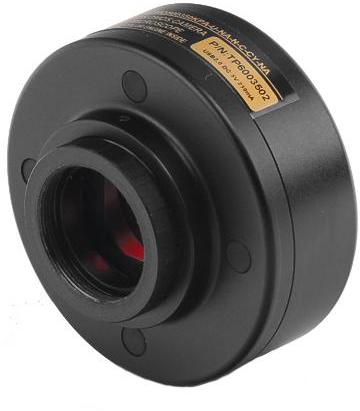

Ucmos02000kpa Microscope Camera

Sensor model: aptina mt9d111
scan mode: progressive
max. Resolution: 1600 x 1200 (approx. 2,000,000 pixels)
sensor size: 1/3.2 (4.73mm(h) x 3.52mm(v), diagonal 5.90mm)
pixel size: 2.8âµm x 2.8âµm
responsivity: 1.0v/lux-sec(550nm)
dynamic range: 71db
a/d converter: 10-bit, 8-bit r.g.b to pc
sn ratio: 42.3db
spectral range: 400-650nm (with ir-filter)
frame size and rate: 8fps @1600 x 1200, 18fps @800 x 600 (multiple speed level)
binning: 1 x 1, 2 x 2
exposure: electronic rolling snap(ers), 0.164~2000ms, roi auto & manual
color rendering technique: ultra finetm color engine
white balance: one push roi white balance/ manual temp-tint adjustment
capture/control api: directshow, twain
capture mode: still picture and video
operating system: microsoftâ® windowsâ® xp / vista / 7 (32 & 64 bit)
