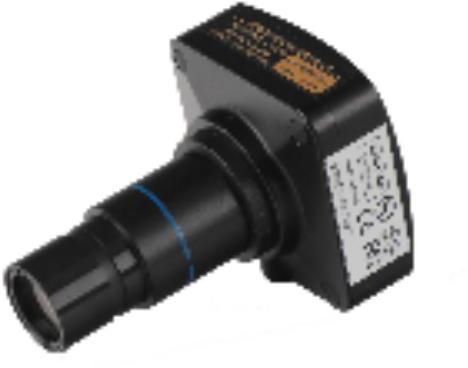

Ucmos03100kpa Microscope Camera

Sensor model: aptina mt9t001
scan mode: progressive
max. Resolution: 2048 x 1536 (approx.3,200,000 pixels)
sensor size: 1/2 (6.55mm(h) x 4.92mm(v), diagonal 8.19mm)
pixel size: 3.2ã�âµm x 3.2ã�âµm
responsivity: 1.0v/lux-sec(550nm)
dynamic range: 61db
a/d converter: 10-bit, 8-bit r.g.b to pc
sn ratio: 43db
spectral range: 400-650nm (with ir-filter)
frame size and rate: 8fps @2048 x 1536, 22fps @1024 x 768, 43fps @680 x 510 (multiple speed level)
binning: 1 x 1, 2 x 2, 3 x 3
exposure: electronic rolling snap(ers),0.128~2000ms, roi auto & manual
color rendering technique: ultra finetm color engine
white balance: one push roi white balance/ manual temp-tint adjustment
capture/control api: directshow, twain
capture mode: still picture and video
operating system: microsoftã�â® windowsã�â® xp / vista / 7 (32 & 64 bit)
