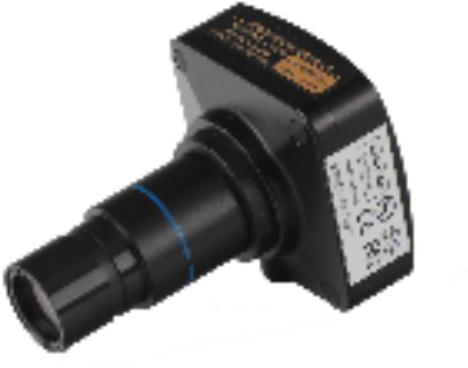

Ucmos10000kpb Microscope Camera

Sensor model:aptina mt9j001
scan mode:progressive
max. Resolution:3584 x 2748 (approx. 10,000,000 pixels)
sensor size:1/2.3 (6.119mm(h) x 4.589mm(v), diagonal 7.649mm)
pixel size:1.67µm x 1.67µm
responsivity:0.31v/lux-sec (550nm)
dynamic range:65.2db
a/d converter:12-bit, 8-bit r.g.b to pc
sn ratio:34db
frame size and rate:1.9fps @3584 x 2748, 8fps @1792 x 1374, 27fps @896 x 684 (multiple speed level)
binning:1 x 1, 2 x 2, 4 x 4
exposure:electronic rolling snap(ers),0.38~2000ms, roi auto & manual
color rendering technique:ultra finetm color engine
white balance:one push roi white balance/ manual temp-tint adjustment
capture/control api:directshow, twain
capture mode:still picture and video
operating system:microsoft® windows® xp / vista / 7 (32 & 64 bit)
