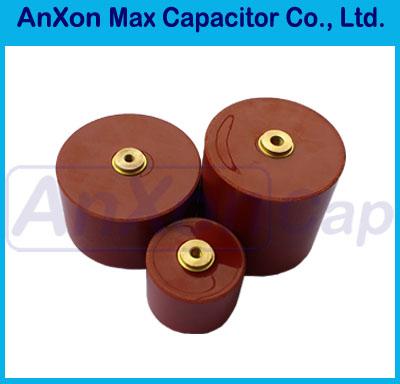

Uhv High Voltage Ceramic Capacitor

We are offering Uhv High Voltage Ceramic Capacitor TDK UHV & FHV Ultra-high Voltage Doorknob Capacitor
Ultra-high Voltage Ceramic Capacitors
Molded type with metal screw terminals
For high voltage power supplylaser
UHV (Edc: 20 to 50kV) series
FHV (Edc: 15 to 50kV) series
UHV Series
Operating temperature: -30 to +85°C
Rated voltage: DC 20 to 50kV
Insulation resistance 100,000M min
Nominal capacitance range: 100 to 4,000pF
FHV Series
Operating temperature: -30 to +85°C
Rated voltage: DC.15 to 50kV
Insulation resistance 100,000M min
Nominal capacitance range: 700 to 7,000Pf
Rated Voltage: 15kVdc, 20kVdc, 24Kv, 30kVdc, 40kVdc, 50kVdc
Capacitance: 100pf, 200pf, 400pf, 560pf, 700pf, 850pf, 940pf, 1000pf, 1200pf, 1300pf, 1400pf, 1500pf, 1700pf, 2000pf, 2100pf, 2500pf, 2600pf, 2700pf, 3000pf, 3500pf, 4000pf, 5200pf, 7000pf,
Specifications:
UHV SERIES (DC. 20 to 50kV, TC: Z5T)
20kVdc: UHV-221A 200pf, UHV-222A 400pf, UHV-223A 700pf, UHV-224A 1000pf,
UHV-1A 1400pf, UHV-2A 2500pf, UHV-3A 4000pf,
30kVdc: UHV-231A 200pf, UHV-232A 400pf, UHV-233A 700pf, UHV-4A 940pf,
UHV-5A 1700pf, UHV-6A 2700pf
40kVdc: UHV-241A 100pf, UHV-242A 200pf, UHV-243A 400pf, UHV-7A 700pf,
UHV-8A 1300pf, UHV-9A 2000pf
50kVdc: UHV-251A 100pf, UHV-252A 200pf, UHV-253A 400pf, UHV-10A 560pf,
UHV-11A 1000pf, UHV-12A 1700pf
FHV SERIES (DC. 15 to 50kV, TC: Y5S)
15kVdc: FHV-153AN 7000pf,
20kVdc: FHV-1AN 1700pf, FHV-2AN 3000pf, FHV-3AN 5200pf
30kVdc: FHV-4AN 1200pf, FHV-5AN 2100pf, FHV-6AN 3500pf
40kVdc: FHV-7AN 850pf, FHV-8AN 1500pf, FHV-9AN 2600pf
50kVdc: FHV-10AN 700pf, FHV-11AN 1300pf, FHV-12AN 2100pf
