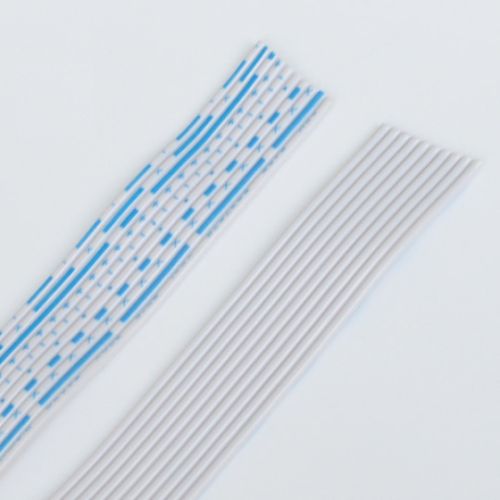

UL2468 PVC Insulated Flat Ribbon Cable

UL2468 flex flat ribbon sensor cable is the PVC insulated tinned copper wire with RoHS complaint used for sensors and internal wiring of electronic equipments etc. Flat ribbon wire using extruded PVC or SR-PVC with excellent mechanical property is extra flexible and easy to cut and process. Conductor 1 marked with red or blue polarity strip Technical Date: - Rated temperature: 80℃ - Rated voltage: 300V - Reference standard: UL subject 758, UL1581 - Conductor: AWG26, AWG24, AWG22 tinned or bare, stranded or solid copper (2cores to 18cores) - Insulation: PVC or Semi-Rigid PVC with grey color - Uniform insulation thickness to ensure easy stripping and cutting - Passed UL VW-1, cUL FT1 and JQA F-mark flame test Conductor AWG Construction Pitchmm Corse InsulationThicknessmm Diametermm MaximumResistance at 20℃Ω/km 26 7/0.16 1.5 2 0.45 1.4*2.9 139.76 3 1.4*4.4 4 1.4*5.9 5 1.4*7.4 6 1.4*8.9 7 1.4*10.4 8 1.4*11.9 9 1.4*13.4 10 1.4*14.9 11 1.4*16.4 12 1.4*17.9 13 1.4*19.4 14 1.4*20.9 15 1.4*22.4 16 1.4*23.9 17 1.4*25.4 18 1.4*26.9 24 1/0.2011/0.16 1.6 2 0.45 1.5*3.1 88.36 3 1.5*4.7 4 1.5*6.3 5 1.5*7.9 6 1.5*9.5 7 1.5*11.1 8 1.5*12.7 9 1.5*14.3 10 1.5*15.9 11 1.5*17.5 12 1.5*19.1 13 1.5*20.7 14 1.5*22.3 15 1.5*23.9 16 1.5*25.5 17 1.5*27.1 18 1.5*28.7 22 7/0.25417/0.16 1.8 2 0.45 1.7*3.5 60.16 3 1.7*5.3 4 1.7*7.1 5 1.7*8.9 6 1.7*10.7 7 1.7*12.5 8 1.7*14.3 9 1.7*16.1 10 1.7*17.9 11 1.7*19.7 12 1.7*21.5 `3 1.7*23.3 14 1.7*25.1 15 1.7*26.9 16 1.7*28.7 17
