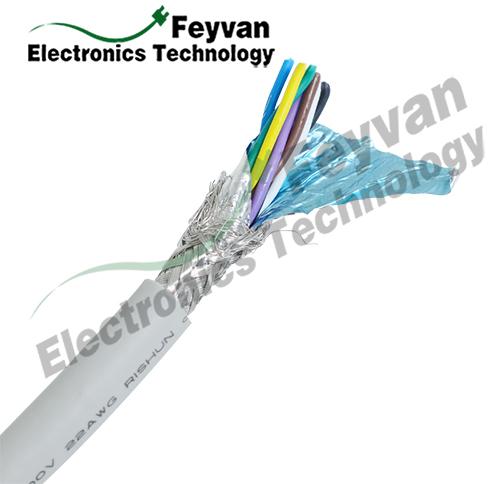

UL2517 PVC Insulated Multi Conductor Shielded Cable

UL2517 multicore shielded cable is the PVC insulated and sheathed tinned copper wire with RoHS complaint used for internal wiring or external interconnection of electronic equipment or appliances such as industrial automation, vehicle, Motor and medical fields. It consists of two or more singles, twisted pairs or group of twisted singles twisted together. The singles or groups of singles may be laid parallel forming a flat, oval or round cable. Barrier layer or fillers are optional. May use same or mixed AWG size. Technical Date: - Rated temperature: 105℃ - Rated voltage: 300V - Reference standard: UL subject 758, UL1581 - Conductor: 30AWG-10AWG, tinned or bare, stranded or solid copper - Insulation: PVC with multiple color option - Jacket: PVC with multiple color option - Cores cabled under aluminum foil or cotton filler optional - Tinned or bare copper stranded drain wire, braided or spiral shield up to 95% coverage optional. - Uniform insulation thickness to ensure easy stripping and cutting - Passed UL VW-1, cUL FT1 and JQA F-mark flame test Part Name Conductor Cores Insulation Jacket Max. Resistance At 20℃ Ω/km AWG Construction Thickness mm Diameter mm Thickness mm Diameter mm UL 2517 26 7/0.16 2 0.38 1.20 0.76 4.60 45.2 26 7/0.16 3 0.38 1.20 0.76 4.50 45.2 24 11/0.16 2 0.38 1.40 0.76 4.80 29.3 24 11/0.16 3 0.38 1.40 0.76 5.30 29.3 22 17/0.16 2 0.38 1.
