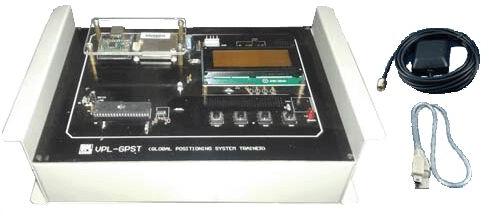

Ultra Fast GPS Trainer (VPL-GPS)

Listing ID #4295293

Get Latest Price

Position Accuracy25 meters CEP without SA or higher.
Update rate1 Hz.
SpeedMax 515m/s.
Low power consumptionMax 35mA@3V Vcc.
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Low power consumption Max 35mA@3V Vcc.
Ultra high sensitivity -175dBm or better.
Velocity Accuracy 0.1 meters/second without SA.
Small form factor 25x25x3.0mm.
Frequency L1 C/A.
Channels 12.
Update rate 1 Hz.
Operating temperature range -40° to 65°.
Position Accuracy 25 meters CEP without SA or higher.
Time Accuracy 60 ns RMS.
Serial Communication 4800 Baud (default) user selectable.
Operating voltage 2.85V to 3.3V.
Speed Max 515m/s.
Jerk 20 meters/sec-3 max.

Description The VPL-GPS is a 12 channel continuous tracking GPS receiver optimized for high sensitivity and low cost applications. The GPS signal is applied to the antenna input of the module, and a complete serial data message with position, velocity and time information is presented at the serial interface.

The GPS10 contains a low noise amplifier for passive antenna operation, RF down converter, baseband processor, flash memory and navigation software. The module provides excellent navigation performance under static or dynamic conditions in areas with limited sky view like urban canyons, fast TTFF for weak signal operation. Power saving mode make this product suitable for handheld and battery-operated devices.

Extremely fast TTFF at low signal level.

Built in high gain LNA.

SMD type with stamp holes.

RoHS compliant (Lead-free).

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

The Company VPL Infotech & Consultants was established in the year 1996, in New Delhi, India. The vast experience of our CEO, Mr. Vinod Peswani has helped us to cater to the demands of our clients spread all over the world. With a goal to be the leading Indian Company in designing, manufacturing & merchandising device programmers, device testers, In-Circuit Emulators and PC based measurement and automation products, we at VPL Infotech & Consultants, provide the most comprehensive development, support and services to our valued customers. In the product line of Device Programmers, handy serial programmer was the first professional programmer, which supported EPROMS, EEPROMS, FLASH, Micro controllers and latest BIOS(s). Later were born a series of universal programmers, which could be connected to desktop and notebook via printer port. VPL Infotech & Consultants also offers a complete series of programming adopters for SMD chips e.g. PLCC, SOIL, TSOP, QFP etc. By using the minute technology VPL Infotech & Consultants offers PC based process control and real time application all over the world. We have got PC add-on cards like A/D, D/A, I/O, OPTO, Relay, IEEE-488, signal processing etc. A/D cards are able to acquire from 60 kHz. /sec To 20 MHz /sec of sampling with a simultaneously sampling too. Customer Servicing We fully understand our customers’ demand for quality products at reasonable price and as per our belief, fulfilling this demand at reasonable price is the key to our progress in the long run. The standard of quality maintained by us is one of the best in industry and the result of this quality commitment is that we are able to offer our customer the 24 months warranty on our products. Research & Development Being good R&D Professionals, we also have a credit to design custom-built equipment, Hardware & Software up gradation/solution for our valuable customers. We at VPL Infotech & Consultants also offer servicing aids for servicing of PCs which provides faster and easy solutions to all computer users manufacturers and servicing professionals. Our R&D teams have developed CPLD board, In-circuit Emulator for Micro-controllers 51 & 196 series and Universal Digital and Analog IC Testers and this list is continuously increasing. Why Us? 1. Efficient after sale services for the valued clients 2. Best quality of products used to manufacture our range 3. Wide network spread all over the world 4. On-Time delivery 5. Stringent quality control policies 6. Regular Research, development and improvement 7. Affordable prices
