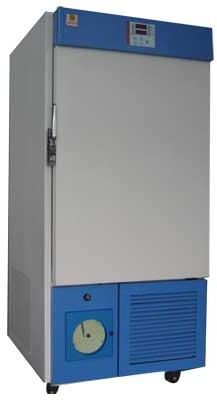

Ultra Low Temperature Freezer

We provide highly efficient ultra low temperature freezer -86 c that is ideal for storage of blood plasma, cell culture, biological and clinical research samples, bone marrow, nucleic acids, material testing, viruses, idnairnai, etc. Herein, temperature is controlled by sophisticated microprocessor based advanced temperature controlling system that manage temperature with cfc-free refrigerant in ambient temperature of + 32 c. cabinet construction

• exterior powder coated crc body and interior cabinet from stainless steel {aisi - 304) with rounded corner for
• high density cfc - free foamed-in-place polyurethane insulation of 6’ thickness.
• keyed handle for door locking to avoid unauthorised acroread castors for easy mobility with front lockable castors.
• double gasket seal in door and hot gas pass through system to minimize water condensation at door mouth.
• high density puf insulated door. Inner insulated sub lids to minimize temperature loss.

• air cooled, hermetically sealed, high performance, cfc-free, cascade refrigeration system.
• safety high condensing pressure cut off switch and make oil separator for the safety of low stage compressor.
• high efficiency air-cooled condenser.
• “ozone friendly" cfc-free refrigerant. Z" `
• ambient temperature 32 c. `

• keyed power onioff switch.
• mlcro gprogeggnrbased ilp ult control system wlth l'gsdilltidt`i id u.1 c.
• set temperature and actual temperature read out. E;}
• provision for rs-485 computer interface. `
• keypad locking system to avoid unauthorized temperature setting. Q
• inbuilt auto voltage transformer for protection against voltage fluctuations. J`
• input voltage: 160·2?0 v ac. Output voltage: 200-230 v ac. ]=i’

• data cable and software for data management through rs-485 interface.
• rechargeable battery back up system for temperature indication and recording during power failure.
• seven days circular chart recorder
