Product Details
Company Details

Our Ultrafiltration Hollow Fiber Membranes are rated among the most advanced Water Treatment Solutions in Singapore. After extensive research and development, we have manufactured Ultrafiltration Hollow Fiber Membranes that have compact design and low energy consumption. They are very efficient in purification of water and are widely used in pretreatment of seawater, drinking water purification, surface water purification and many other applications. Long life, easy maintenance and superb performance make our Ultrafiltration Hollow Fiber Membranes one of the best Water Treatment Solutions.

Application
Broad range of application for the treatment of water and wastewater from :

Pretreatment for seawater RO or NF desalination
Drinking water purifi cation
Surface water purifi cation
Ground water purifi cation
Municipal wastewater/effl uent water purifi cation and reuse
Industrial wastewater treatment
Water recycling and resource recovery

PoraMax™ UF hollow fi ber membrane features

High performance : High and stable permeate fl ux and excellent separation capability at low operating pressure.
High reliability : Narrow pore size distribution guarantees excellent treated water quality. Careful selection of membrane materials provides exceptional chemical compatibility and durability with enhanced tolerance to cleaning chemicals.
High mechanical : strength Membrane is made tougher to abate breakage under harsh environment.
Long lifespan : Longer service life reduces maintenance and replacement frequency.

Specifications

Module Type			STMUF0909I/O	STMUF1615I/O	STMUF2215I/O	STMUF2220I/O	STMUF2515I/O
Membrane	Membrane Area, Inside-Out Confi guration^	m²	6.5	25	33	45	40
	Membrane Area, Outside-In Confi guration^	m²	8	30	40	55	48
	Fiber ID/OD	mm	Please refer to individual specifi cation sheet for further details
	Pore Size	μm	0.01 – 0.08 (depending on membrane material and customer requirement)
OperatingCondition	Filtration Mode		Inside-Out / Outside-I
	Designed Flux, Inside-Out Confi guration*	m³/d	4.5-14	18-55	24-75	32-102	29-92
	Designed Flux, Outside-In Confi guration*	m³/d	3-21	11-82	15-113	20-153	17-138
	Max. Transmembrane Pressure (TMP)	Pa	300
	Operation Temperature	^oC	10 - 40
	pH Range **		1 - 12
Material	Membrane Material		PVDF , PS , PVC , PAN
	Module Material		uPVC
	Potting Material		Epoxy/Polyurethane Resin
Connection	Pipe Connection		DN25	DN40, Air inlet G3/8

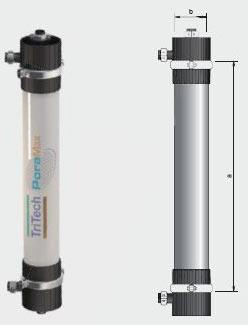

Module Dimensions	Length, a	mm	1000	1500	1500	2000	1500
Module Dimensions	Diameter, b	mm	90	160	225	225	250
